PetSafe Microchip Cat Door

PetSafe Microchip Cat Door
PetSafe Microchip Cat Door
PetSafe Microchip Cat Door
PetSafe Microchip Cat Door
PetSafe Microchip Cat Door
PetSafe Microchip Cat Door
PetSafe Microchip Cat Door
PetSafe Microchip Cat Door

PetSafe Microchip Cat Door

$170.00
$170.00
Sold out
Info
Shipping calculated at checkout.

This field is required.

  • Electronic pet door with microchip recognition for secure, exclusive access.
  • Flap dimensions: of 5.91" W x 5.51" H, suitable for cats and very small dogs.
  • Compatible with 15-digit microchip numbers and programmable for up to 40 pets.
  • Four-way locking system: open, locked, in-only, and out-only.
  • Easy DIY installation in wood, PVC, uPVC doors; additional accessories required for metal, glass, brick, or wall installation.
PetSafe Microchip Cat Door
Default Title Edit
PetSafe Microchip Cat Door

Product Details

The PetSafe Microchip Cat Door utilizes advanced microchip recognition technology to grant exclusive access to your cat or very small dog while keeping unwanted animals at bay. The Microchip Cat Door only opens when a pet with a programmed microchip or collar key walks up to the door.  The 5.91" W x 5.51" H flap is suitable for cats and very small dogs, allowing your furry friends to come and go as they please.  This door is rated for outside temperatures of -25°C (-13°F) to +55°C (131°F).

The Microchip Cat Door is designed to work with 15-digit microchip numbers and can be easily programmed for up to 40 pets, making it perfect for multi-pet households. You can also purchase an additional Microchip Cat Door Collar Key to give non-microchipped cats and dogs access to the door.

The four-way locking system offers ultimate control, allowing you to choose between open, locked, in-only, or out-only settings based on your specific needs. The energy-efficient weather stripping and dual magnetic locking points provide added insulation and security, ensuring a safe and comfortable environment for your pets.

Installation is straightforward and can be completed as a DIY project for most wood, PVC, and uPVC doors. For metal, glass, brick, or wall installations, additional accessories are required, and a different cutout size may be necessary. The PetSafe Microchip Cat Door is a reliable and economical choice for pet owners seeking to give their pets the freedom they deserve while maintaining a secure home.

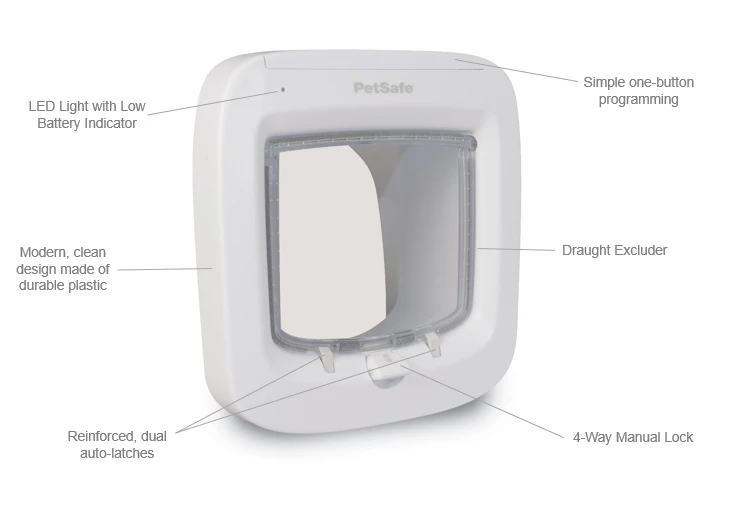

Features:

  • Microchip-activated access ensures only programmed pets can enter or exit, keeping unwanted critters out.
  • Collar key option available for non-microchipped pets, ensuring all furry friends have access.
  • Clean, white frame design complements your home's aesthetic.
  • Energy-efficient weather stripping and dual magnetic locking points provide added security and insulation.
  • Accommodates multi-pet households with the ability to program up to 40 pets.
  • DIY installation into most wood, PVC, and uPVC doors but metal, glass, brick, and wall installation will require additional accessories and a different cut out size
  • Wall tunnel kit [PAC54-16248] available through PetSafe
  • Metal and Glass (cannot cut existing glass) Adaptor [PAC54-16246] available through PetSafe requires a different rough cutout size


Benefits:

  • Economical microchip pet door option
  • Gives your cat exclusive access to come and go as they please
  • Flap designed to accommodate cats and very small dogs
  • Four-way locking system controls access in and out of your home

Size Chart

  • Original5.91"w x 5.51"h

Flap Dimensions:

5.91"w x 5.51"h

The entry way your dog goes through.
flap dimensions
SizeFlap DimensionRough CutoutOutside FrameRecommended Pet height
Cat Door5.91" W x 5.51" H6.87" W x 6.62" H (wood)9.41" W x 8.66" H4" - 8"

Find The Best Pet Door Size For My Pet

A

Pet Height: inches

B

Pet Width: inches

Please fill the above fields.

Additional Information

Frame Material

Plastic

Your Maximum Pet Size

Cats

Climate Suitability

Temperate Weather

Ability to Lock Flap

Yes, Four-way locking System

Can Be Installed In

Doors

Installation Instructions

Installation icon Difficulty Moderate
Installation icon Steps 04
Installation icon Time Required 1-2 hours
Installation icon Sections 01
Installation icon Flags 00

Parts

  • Interior Frame
  • Exterior Frame
  • Cutout Template
  • Screw Plugs
  • M4 x 28mm
  • M4 x 50mm
  • M4 x 75mm

Tools

  • Drill
  • Jigsaw
  • Tape Measure
  • Pencil
  • Level
  • Phillips head screwdriver
  • 12mm drill bit
  • 6mm drill bit
  • Masking Tape

Step 1 Initial Programming

  • Have your cat nearby for programming. Once in learn mode there will be 60 seconds to program the door.

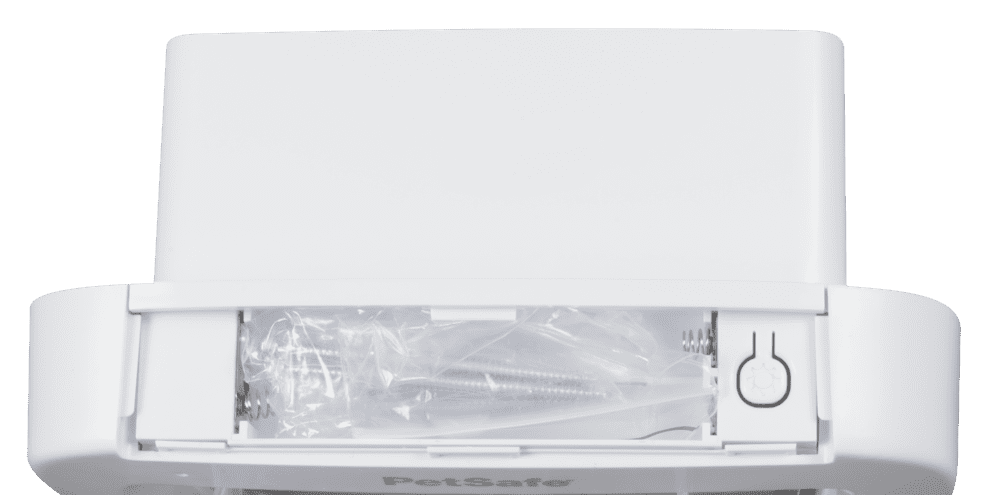

  • Insert four AA batteries into the battery compartment. The unit will automatically turn on. Do not use rechargeable batteries.
  • Set the manual lock to the In-Out position.
  • Press and hold the mode button until the LED turns red. The door is now in learn mode.
  • Quickly place your cat’s head in the tunnel to scan the microchip. Once recognized, the red light will turn off and the door will unlatch.

Step 2 Position the Template

  • Measure the height of your cats belly.
  • Mark this height on your door and draw a 168mm horizontal line.
  • Tape the cutting template to the door having the drawn horizontal line at the bottom of the circle.
  • Drill the four corner holes using a 12mm drill bit.

Step 3 Make the Cutout

  • Starting in a drilled hole, use a jigsaw to cut along the lines for the door hole.
  • Place the interior frame into the cut hole. On the outside of the door, place the exterior frame.
  • Mark the exterior screw holes with a pencil.
  • Remove both frames and drill exterior screw holes with a 6mm drill bit.

Step 4 Make the Cutout

  • Remove the template and drill holes inside the corners.
  • Use a jigsaw to connect the drill holes, following the lines.

Warranty

Warranty Type: One Year Non-Transferable Limited Warranty

Duration: Valid for one (1) year from the purchase date for the original retail consumer purchaser only.

Coverage:

  • PetSafe product will be free from defects in material or workmanship when subject to normal and proper residential use.

  • Labor and parts are covered for the first year of ownership.

  • In the event of a defect, PetSafe will replace the part with a new or refurbished part.

Exclusions:

  • Products represented as used, refurbished, or “as-is”, or not in the original packaging are not covered.

  • Warranty does not cover damage or defects caused by animals, commercial use, misuse, neglect, improper installation, use of non-PetSafe accessories, events beyond normal residential conditions, and any cause not involving manufacturing defects.

  • Does not cover labor for removal or installation of parts.

View the full Petsafe Pet Products warranty policy.
