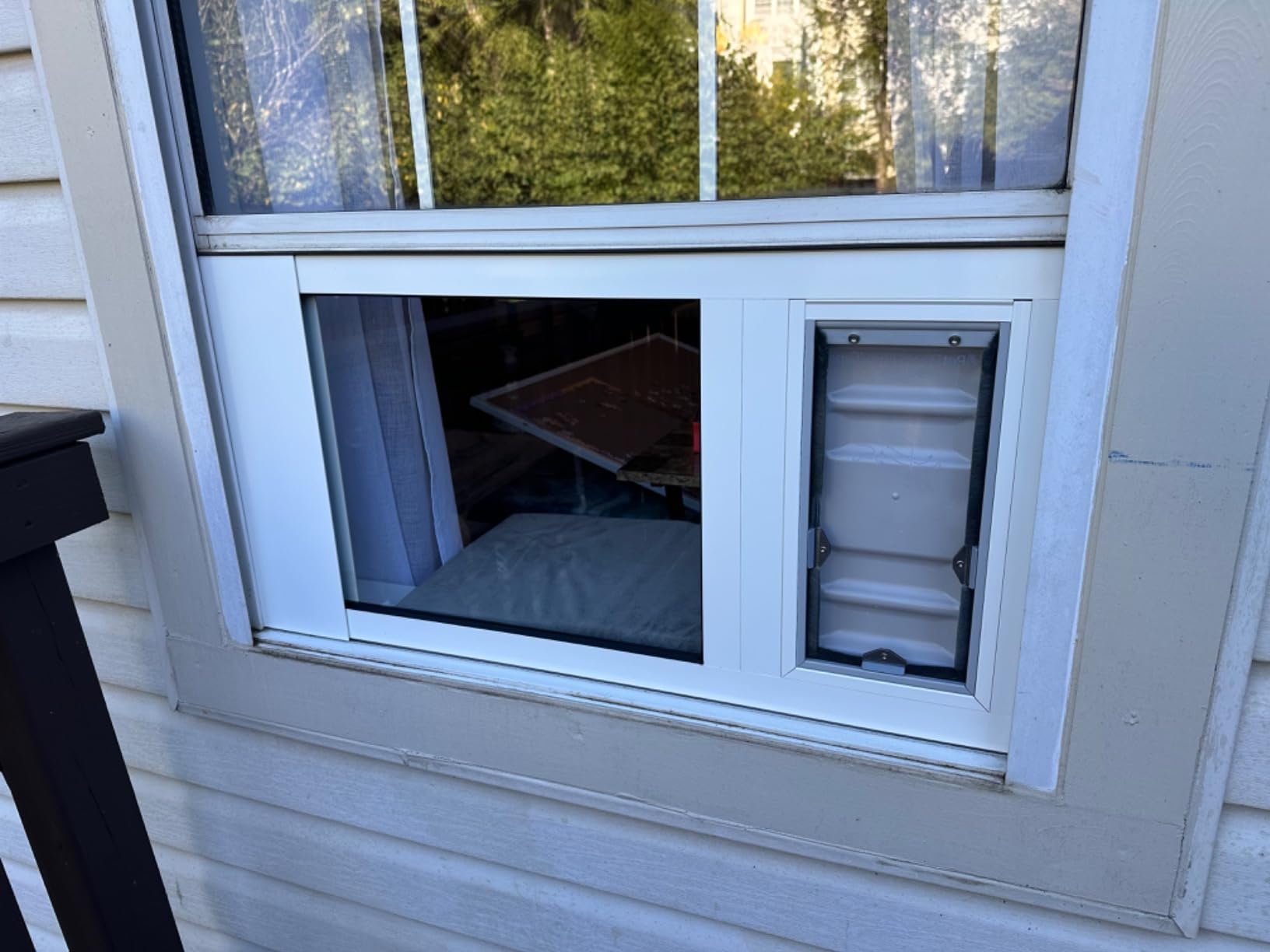

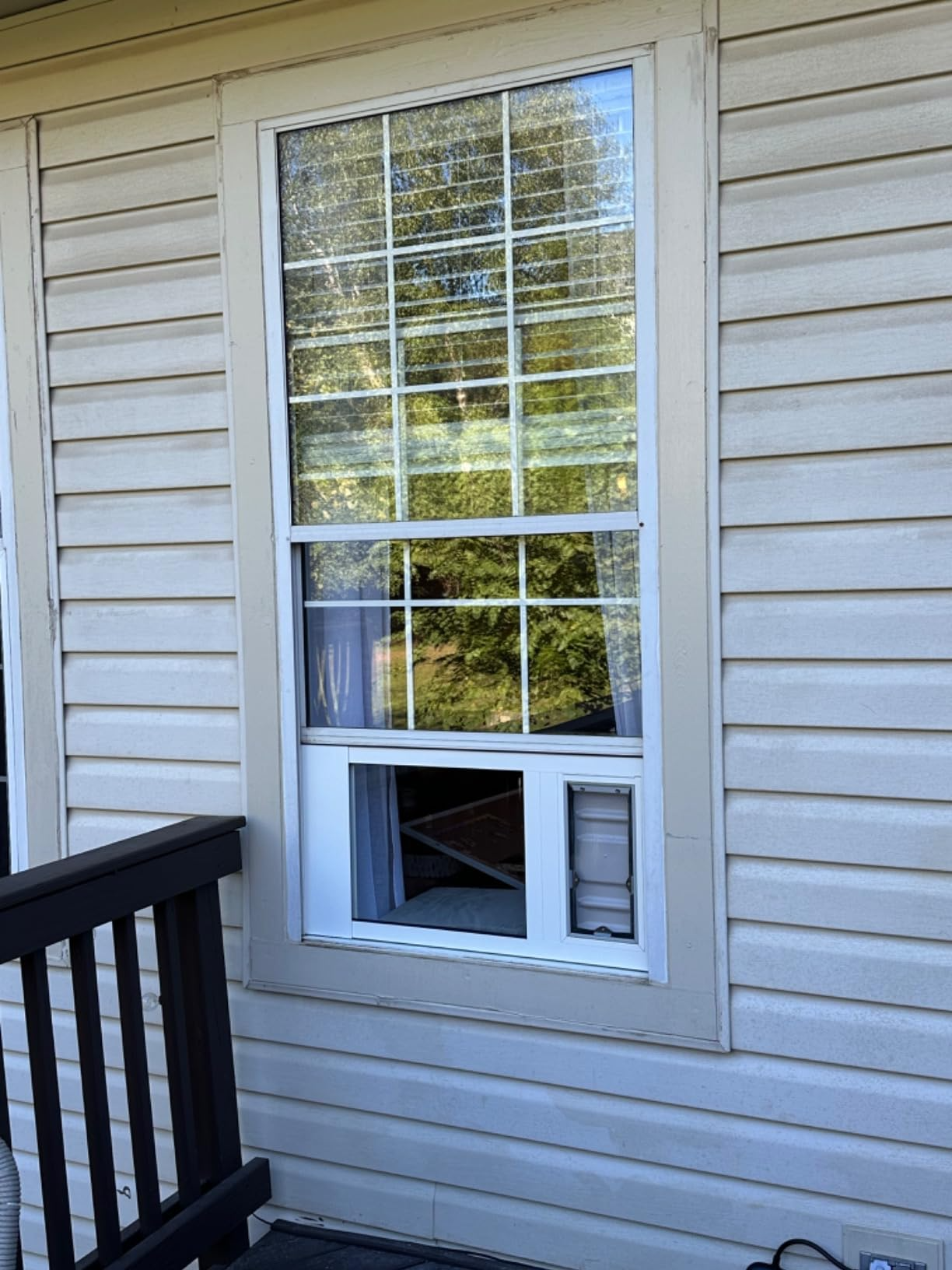

Liberty Pet Door for White Sash Windows
- Designed to fit sash windows ranging from 22" to 44" in width, accommodating a variety of home styles and sizes.
- Features clear safety glass for improved insulation, ensuring energy efficiency across severe 4-season climates.
- Offers a simple, semi-permanent installation process, ideal for renters and those looking for a non-invasive solution.
- Comes with a locking cover for security, constructed with a heavy extruded aluminum or vinyl frame for long-lasting durability.
- Available in multiple sizes and custom-made-to-order for windows outside the standard adjustment range, providing a tailored fit for any pet.
Product Details
Sizing & Fit
Installation Guide
FAQs
ReviewsProduct Details
Crafted to meet the demands of pet owners who refuse to compromise on quality, the Liberty Pet Door for Sash Windows is the embodiment of innovation and style. It is meticulously designed to fit into sash windows tracks at least 1" wide, providing a range of sizes suitable for windows from 22" to 44" in width.
Featuring a heavy extruded aluminum or vinyl frame, the Liberty Pet Door for Sash Windows not only promises durability but also comes in a variety of colors to match any home's decor. The clear safety glass provides enhanced insulation to maintain a comfortable indoor environment regardless of the season.
Constructed with a durable white finish, the Liberty Pet Door withstands the rigors of extreme weather and energetic pets. Your window needs a wide track to accommodate your panel. Aluminum panels need a minimum of 1" while vinyl panels need 1-1/4".
Installation is straightforward, thanks to its spring-loaded design that secures the pet door into place without the need for permanent alterations. It's the perfect choice for renters and vacation homes. The clear vinyl flap, equipped with a magnetic sealing and weatherstripping, offers pets a clear view outside while remaining sealed against the elements. The flap is also available in smaller sizes for very small dogs and cats.
Each Liberty Pet Door comes with a locking cover, made from molded ABS plastic, that loads from the top, providing peace of mind for pet owners when the need arises to secure their home.
Constructed in the USA, the Liberty Pet Door for Sash Windows is a testament to quality craftsmanship. Its design not only caters to the comfort and freedom of your pets but also enhances the aesthetic and energy efficiency of your home.
Features:
- Customizable fit: Offers a 3" spring-loaded height adjustment, ensuring a perfect fit for windows with track widths of at least 1-1/4" thick. Unsure what adjustment range to get? Pick the shorter of the two.
- Clear, adjustable flap: The clear vinyl flap with adjustable magnets resists heavy wind and extreme temperatures, providing a comfortable exit and entry for pets.
- Easy maintenance: The flap's material allows for simple cleaning with dish soap and water, minimizing upkeep efforts.
- Secure locking mechanism: Comes with a sturdy locking cover and additional C-clamp lock option for enhanced home security.
-
Visually appealing: Available in white to seamlessly blend with your existing window frame, adding elegance without compromising on functionality.
Size Chart
- Small5"w x 12"h
- Medium 7"w x 16"h
- Large 9"w x 20"h
Flap Dimensions:
5"w x 12”h
The entry way your dog goes through.
Height To Raise Window
18 1/2"
How high you must raise your window in order to fit the panel into the track.Flap Dimensions:
7"w x 16"h
The entry way your dog goes through.
Height To Raise Window
22 1/2"
How high you must raise your window in order to fit the panel into the track.Flap Dimensions:
9"w x 20"h
The entry way your dog goes through. Height To Raise Window
26 1/2"
How high you must raise your window in order to fit the panel into the track.| Flap Size | Flap Dimension | Height To Raise Window | Recommended Pet Height |
|---|---|---|---|
| Small | 5" w x 12" h | 18 1/2" | 9" - 15" |
| Medium | 7" w x 16" h | 22 1/2" | 9" - 21" |
| Large | 9" w x 20" h | 26 1/2" | 9" - 27" |
For your adjustment range, you need to measure the length of your sash window track from the furthest left to right. The adjustment range of your pet door should ideally have your track length in the middle. The following adjustment ranges are available:
- 22"-25"
- 25"-28"
- 28"-31"
- 31"-34"
- 34"-37"
- 37"-40"
- 40"-43"
Custom orders are subject to special restrictions.
Aluminum panel has 1" framing, measure your track width to make sure that your window will accommodate the panel. Vinyl panels have a 1-1/4" framing.
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Difficulty
Easy
Steps
04
Time Required
0.5 hours
Sections
01
Flags
01
Parts
- Sash Window Pet Door
- Foam Weather Strip
- Center Post Weather Seal Draft Stopper
- Screwdriver
Tools
- Flathead Screwdriver
Please read instructions & notes thoroughly before installation.
Step 1 Release Spring Mechanism
- Loosen the width adjustment locks at the end of the pet door insert with the screwdriver. This allows the spring mechanism to move freely from side to side.
Step 2 Check Panel Fit
- Insert the sash into the window track. Push against the spring mechanism and swing the opposite end into the opposite window track. Gently release. Tighten the width adjustment locks.
Step 3 Apply Weatherstripping
- Remove panel from window track.
- Apply the foam weather-stripping by peeling back the paper and exposing the adhesive. Unroll it along the edge of the sash, pressing to ensure it adheres. Install on both the top and the bottom. Trim to fit with scissors.
Step 4 Mount Seal Draft Stopper
- Mount the Center Post Weather Seal Draft Stopper. This strip prevents air from leaking between the window frame when raised to accommodate the sash. Trim to fit with scissors.
- Put the panel back into the window track. Tighten width adjustment locks.
Switch the Side of the Flap
You can switch which side of the sash panel the pet door flap is on to best fit your home.
Step 1
- Remove the screws on the top and bottom closest to the edge of the pet door. Then slightly loosen the screws closest to the glass. Next, slide off the side piece, then the flap assembly.
Step 2
- Rotate the flap assembly (essentially flipping it upside down) then slide it back in. Make sure the locking cover is on the same side as the width adjustment locks.
Step 3
- Replace the end spacer and screws.
LOCKING YOUR WINDOW
For a permanent lock, install a wood screw in the track immediately above the window on both sides. You will no longer be able to raise the window. For a temporary lock, place a removable wooden dowel or Charley bar in either track above the window, shown in Detail 1.
HEIGHT OF YOUR WINDOW
Make sure you place steps or ramps leading to your pet’s door at a height that works! When they go through the flap, the top of the flap should be at least 1" (2,5 cm) higher than the top of their back. Watch your pet and adjust as needed to keep them comfortable.
Warranty
Warranty Type: Limited.
Duration: 3 years
Coverage: Defects in materials and workmanship under standard regular use.
Exclusions:
Damage caused by misuse or not using the product as intended.
Improper installation.
Damage caused by chewing.
