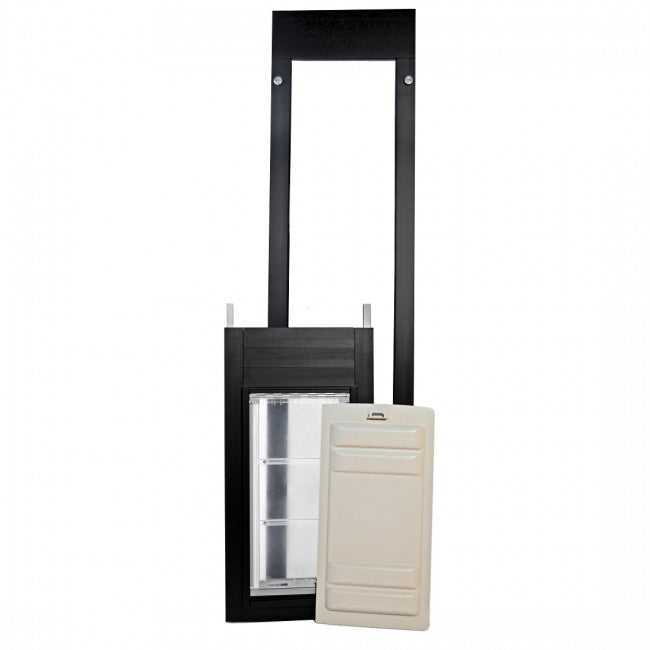

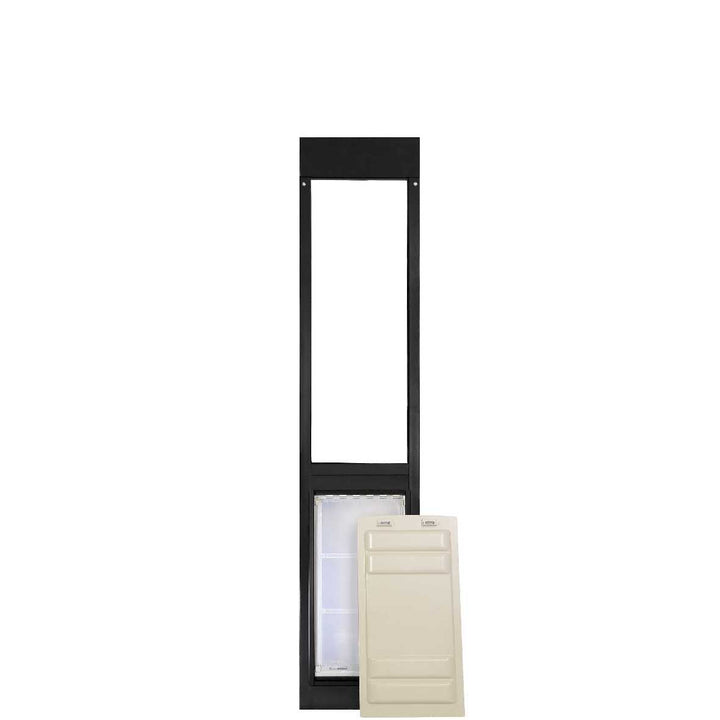

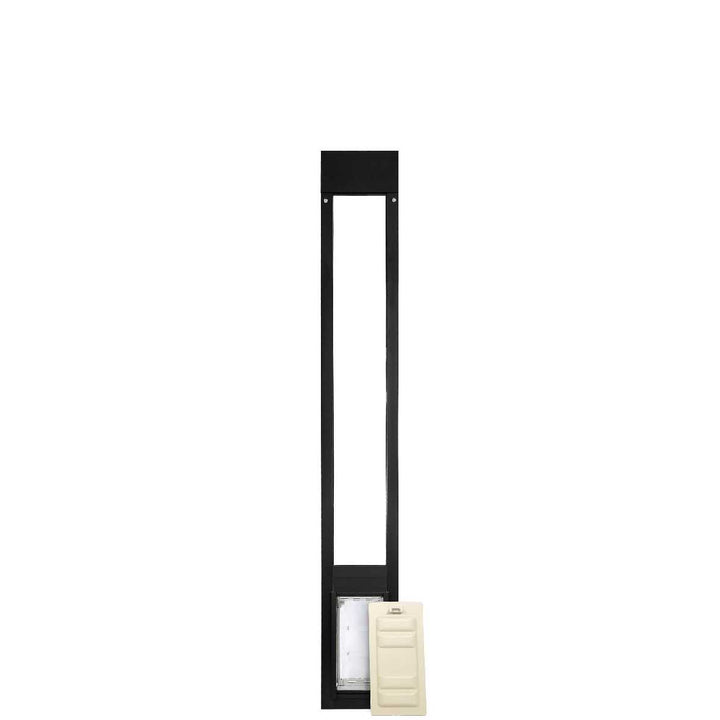

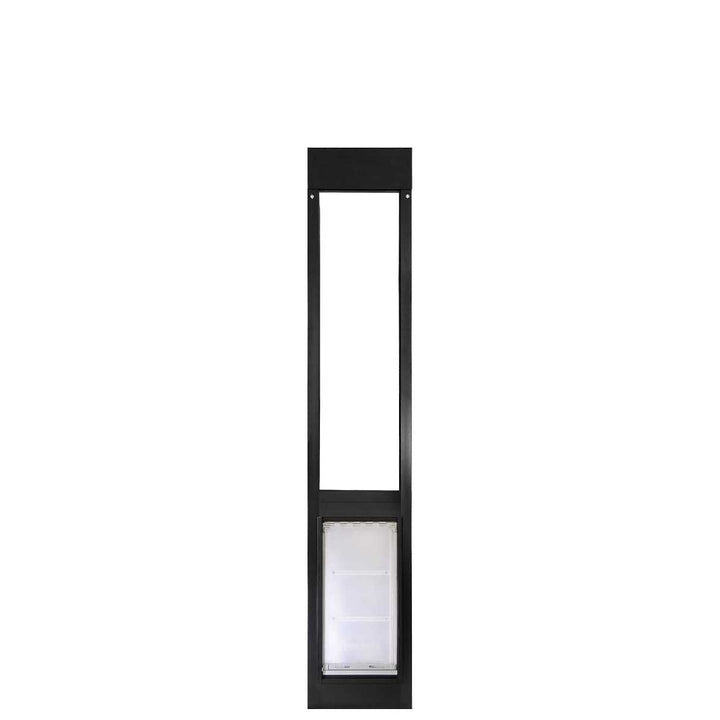

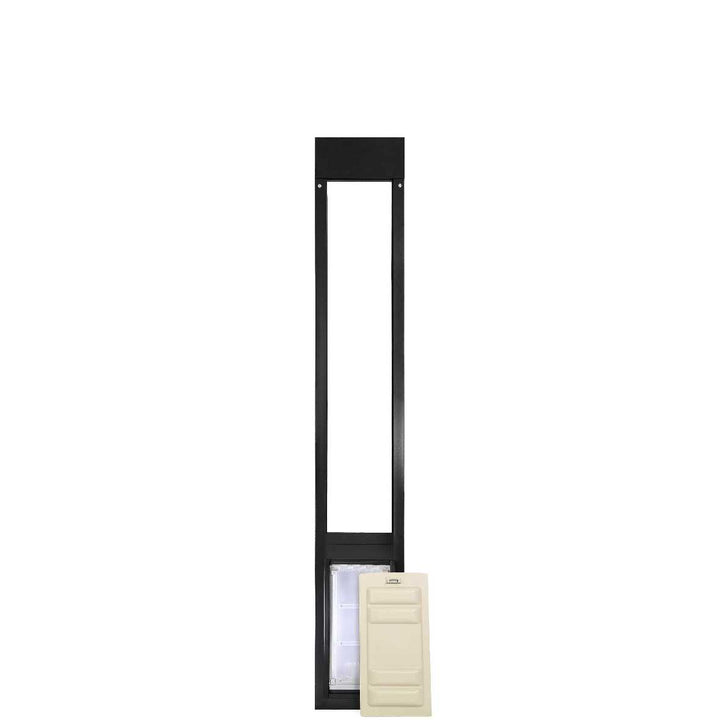

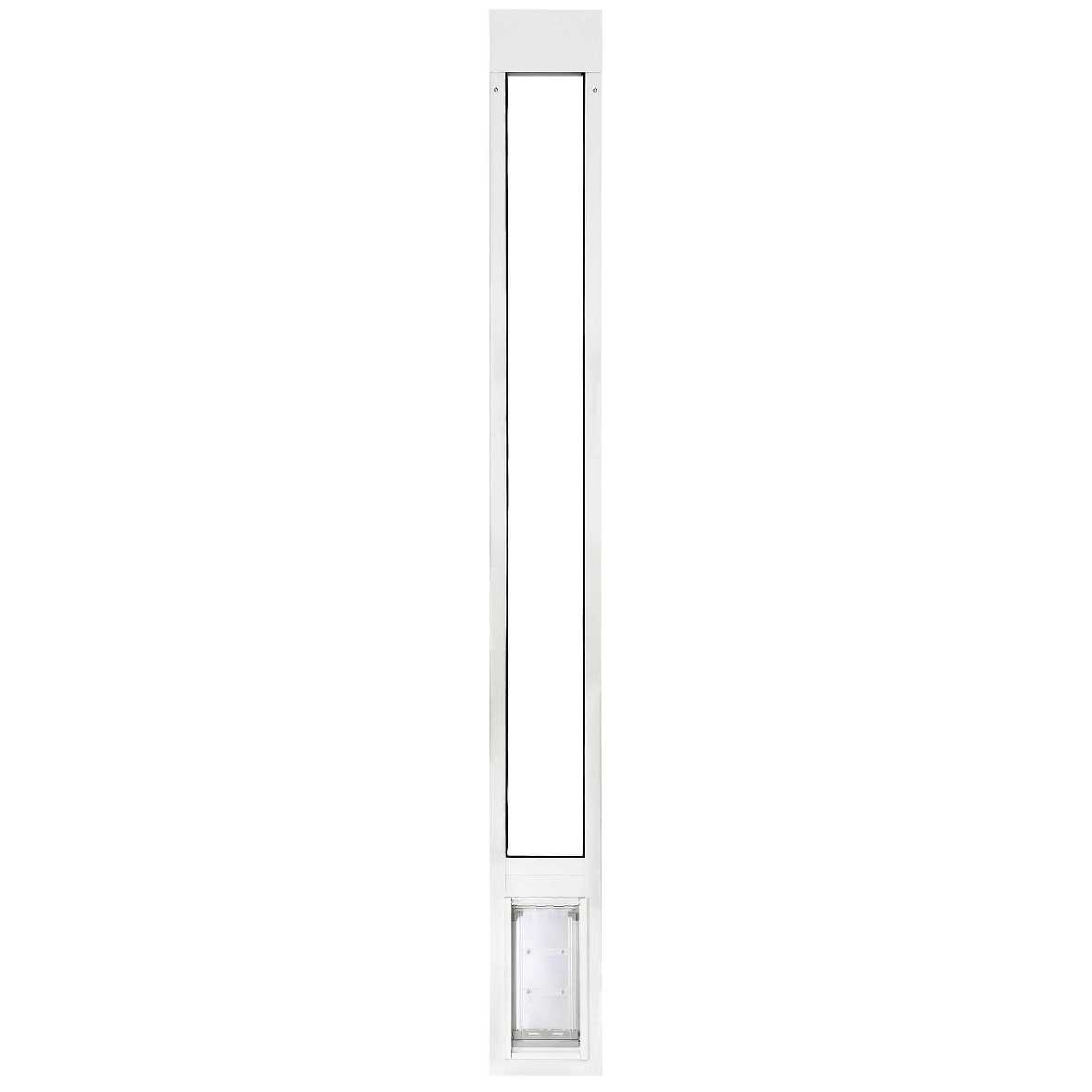

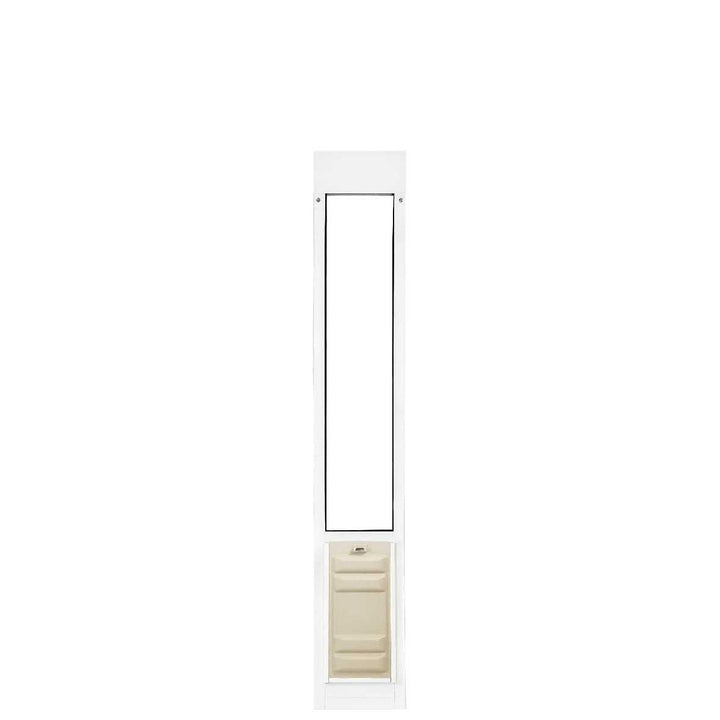

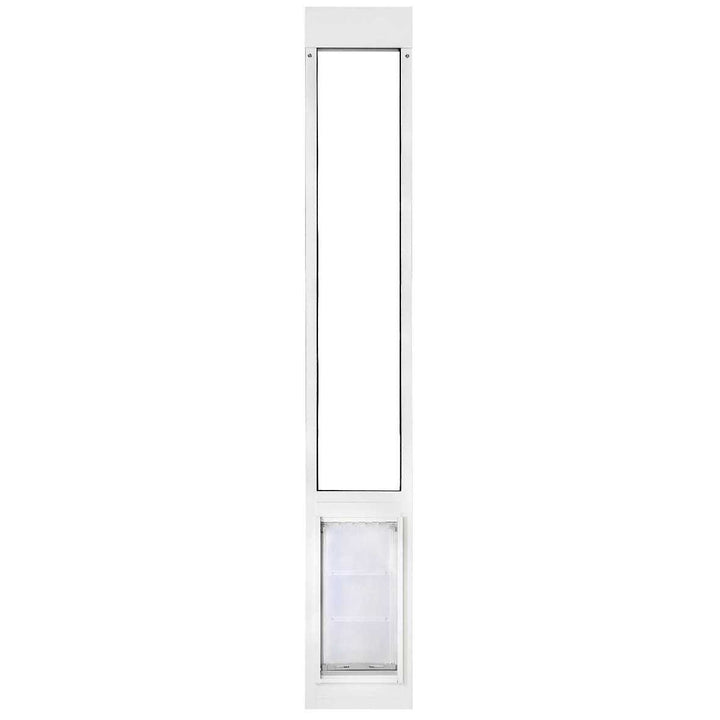

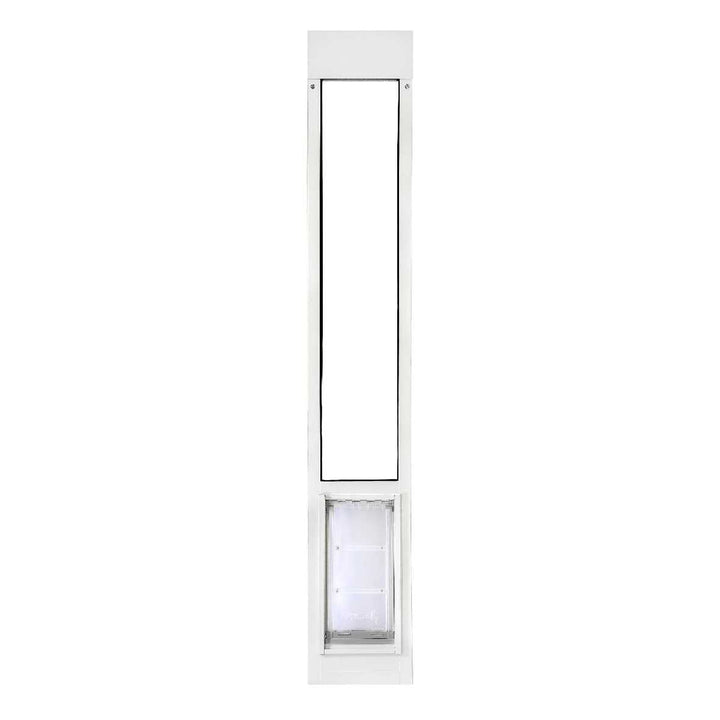

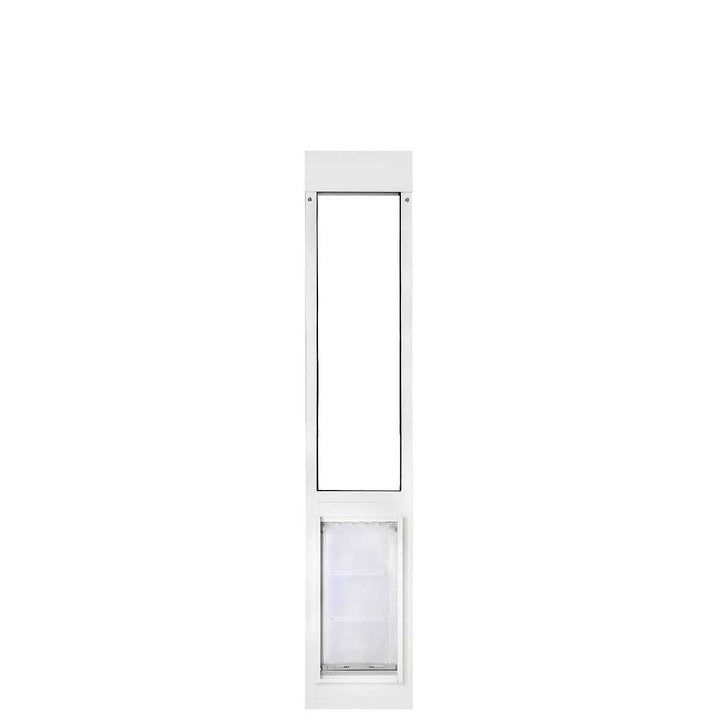

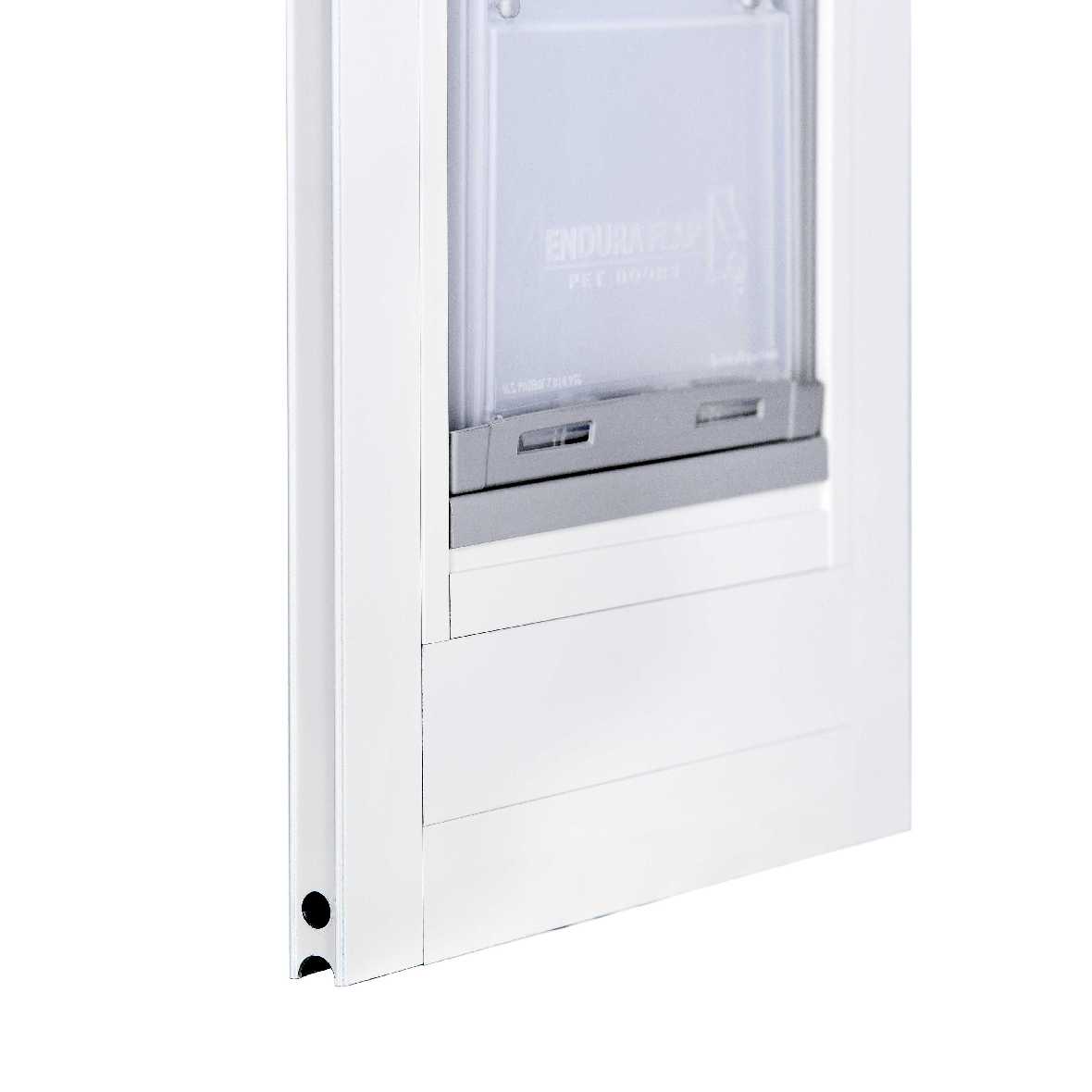

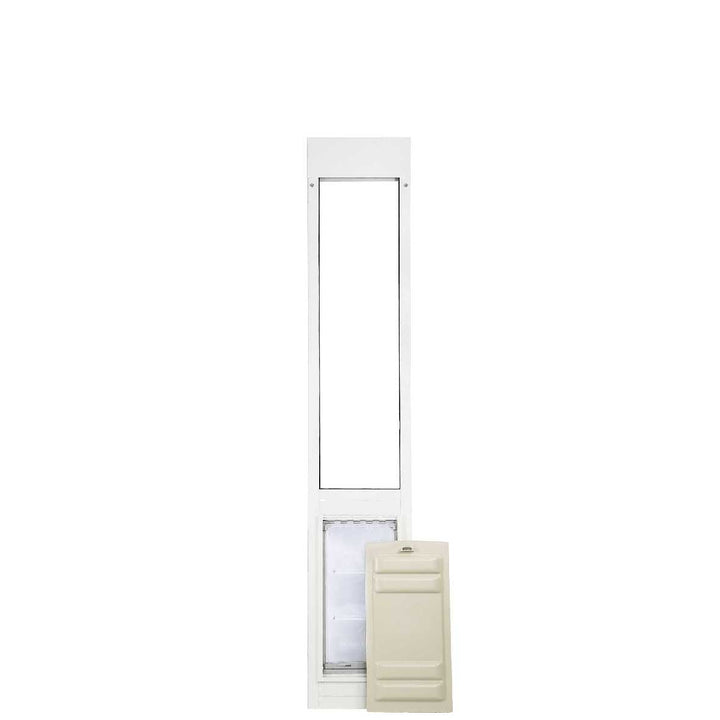

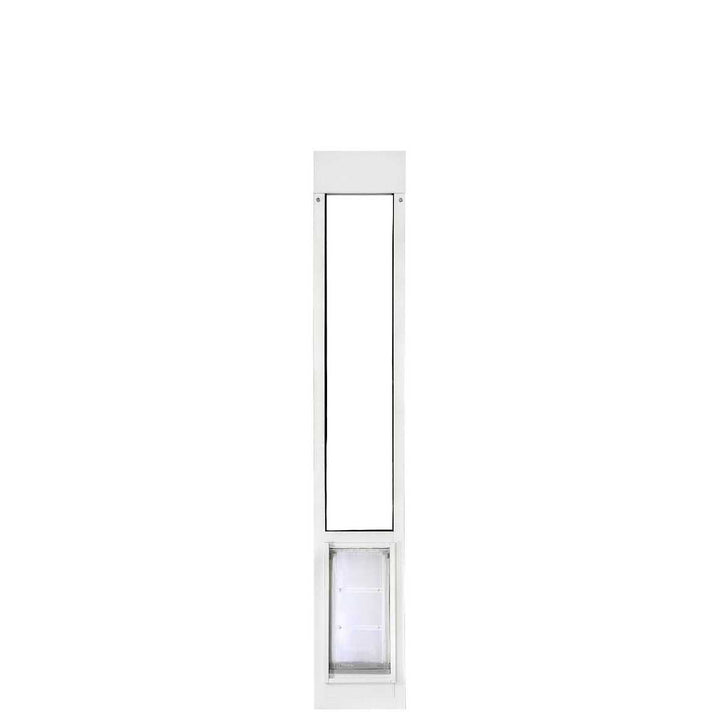

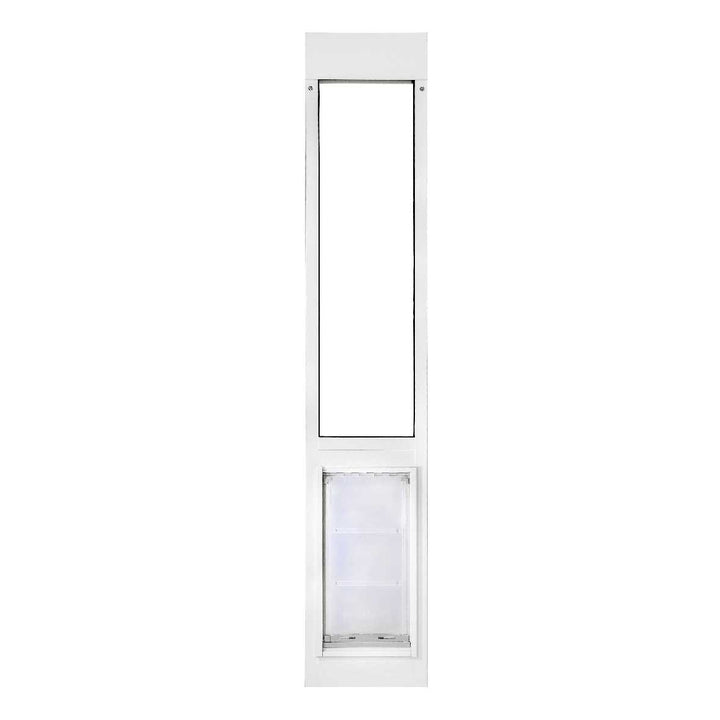

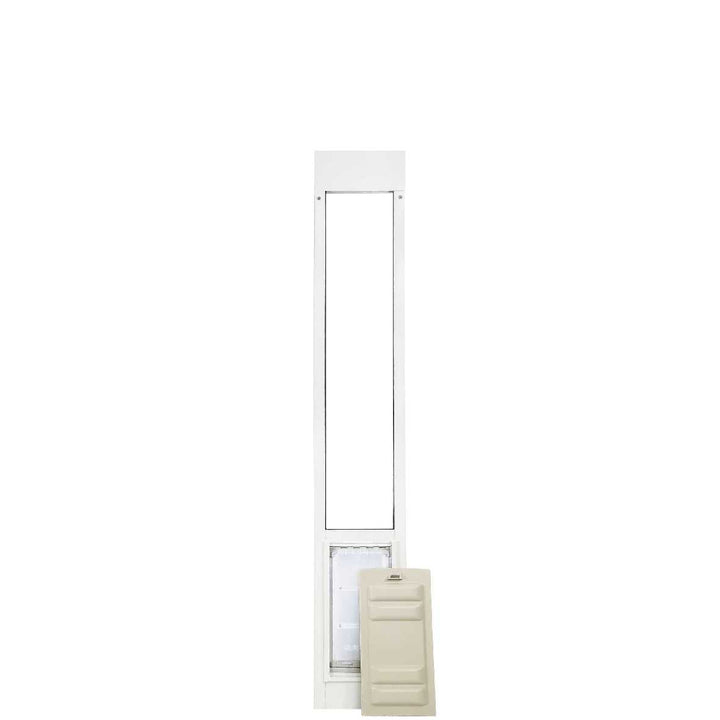

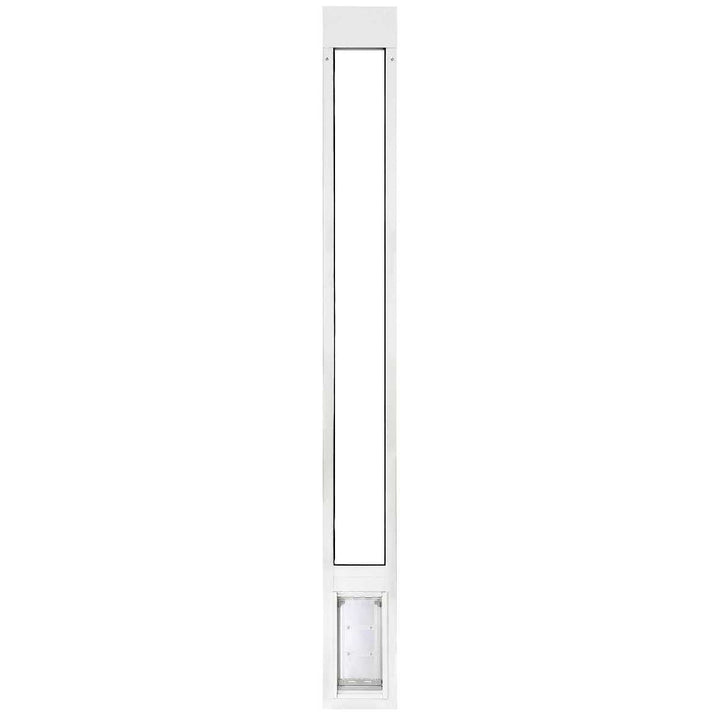

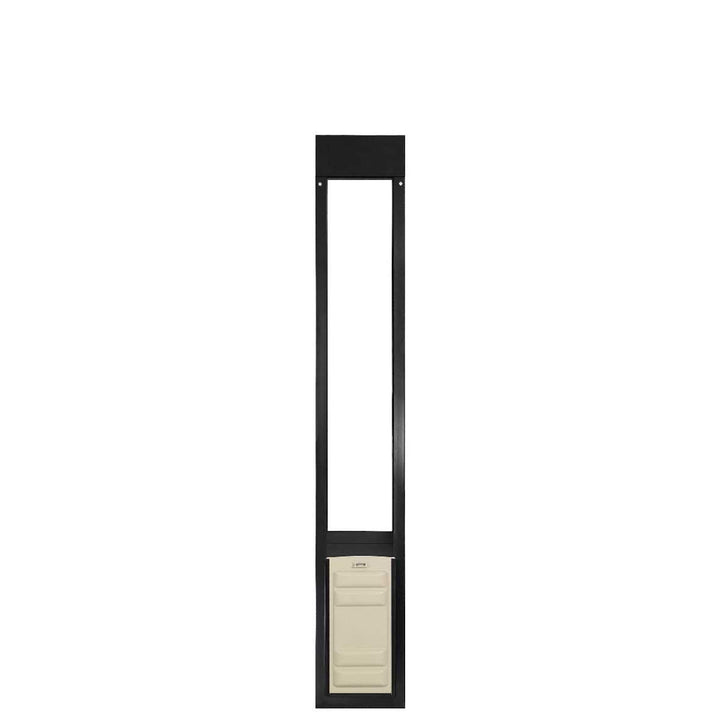

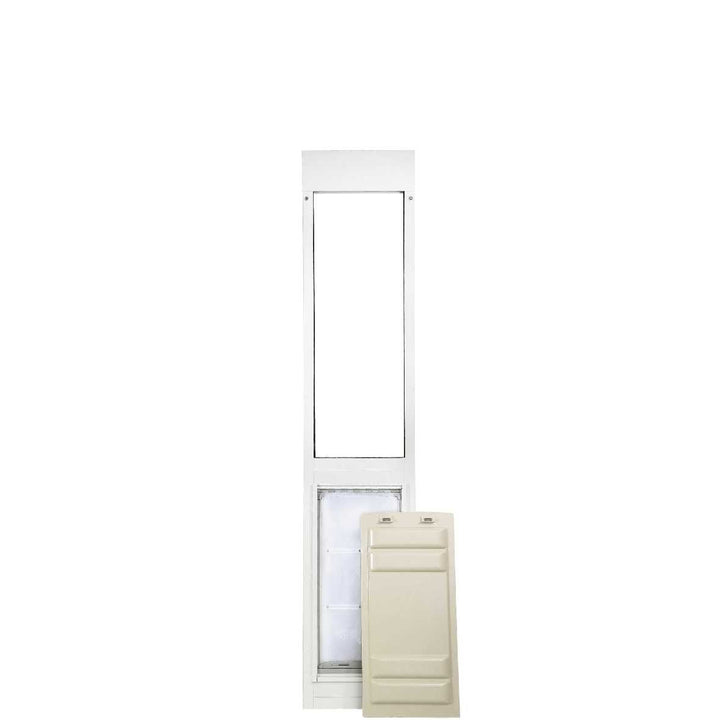

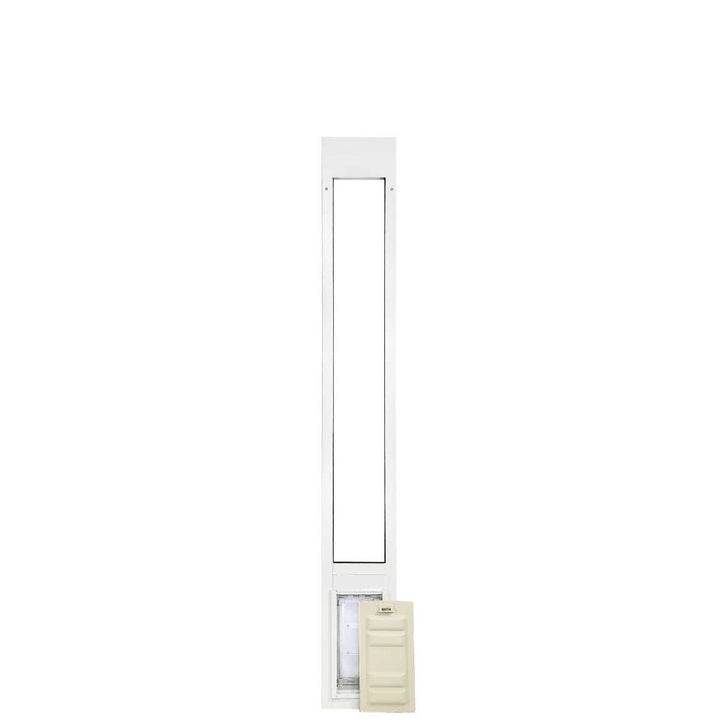

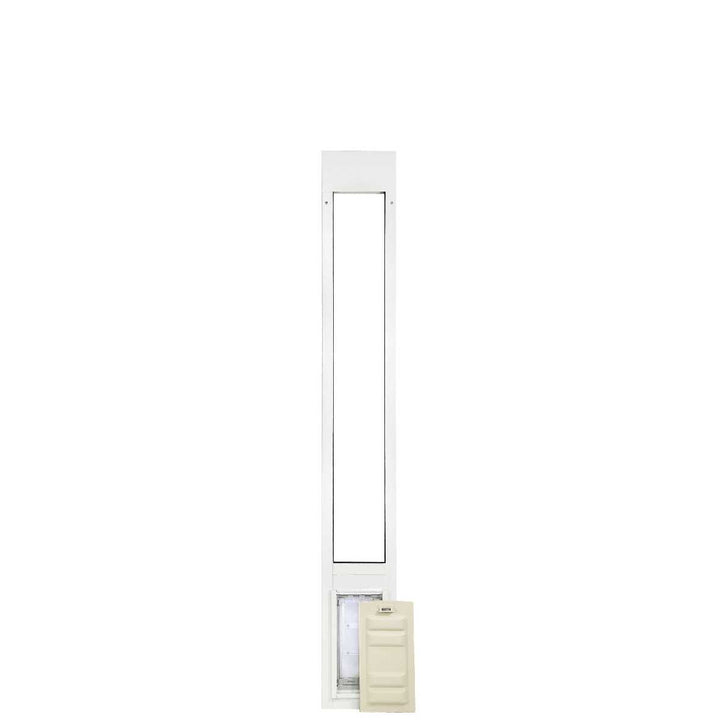

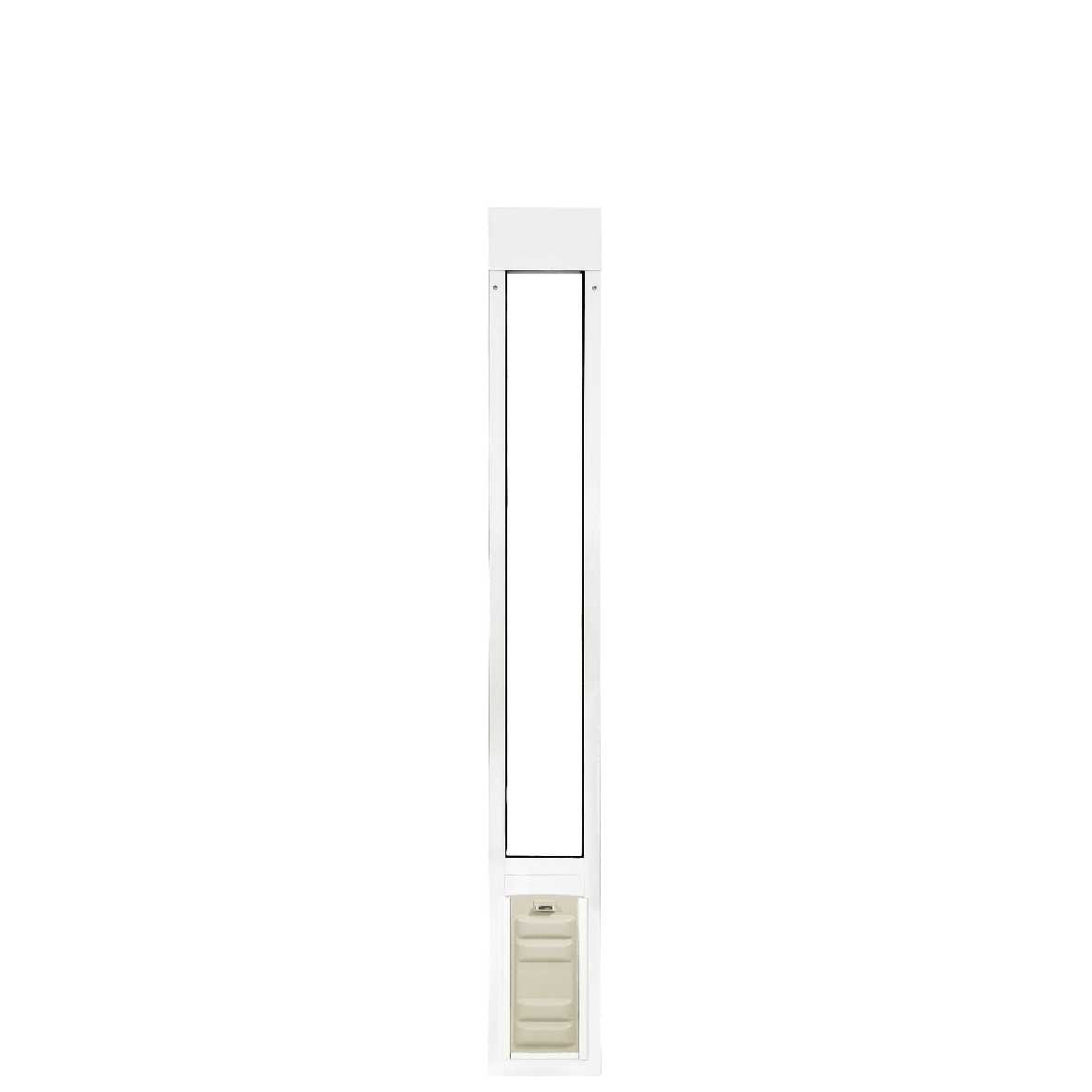

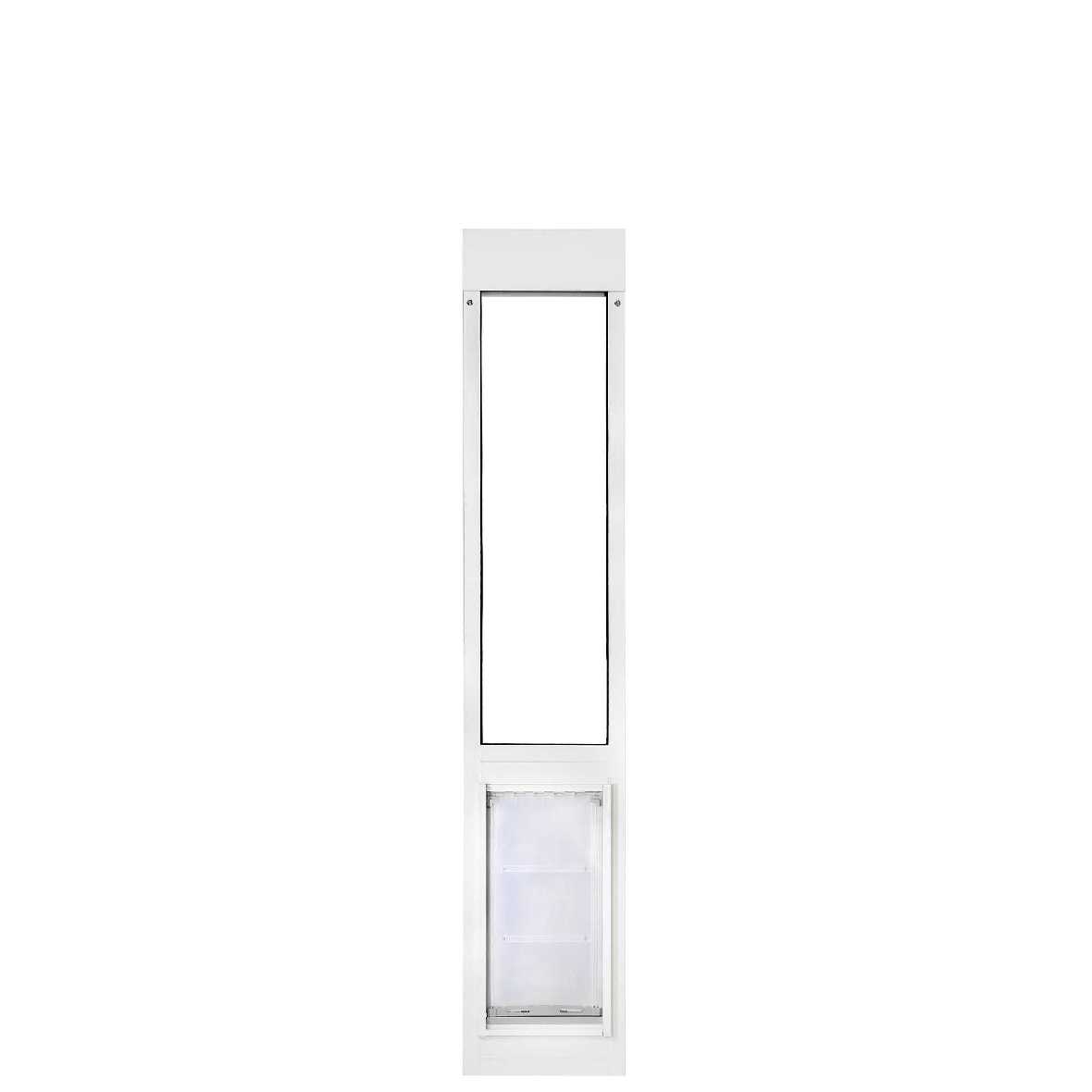

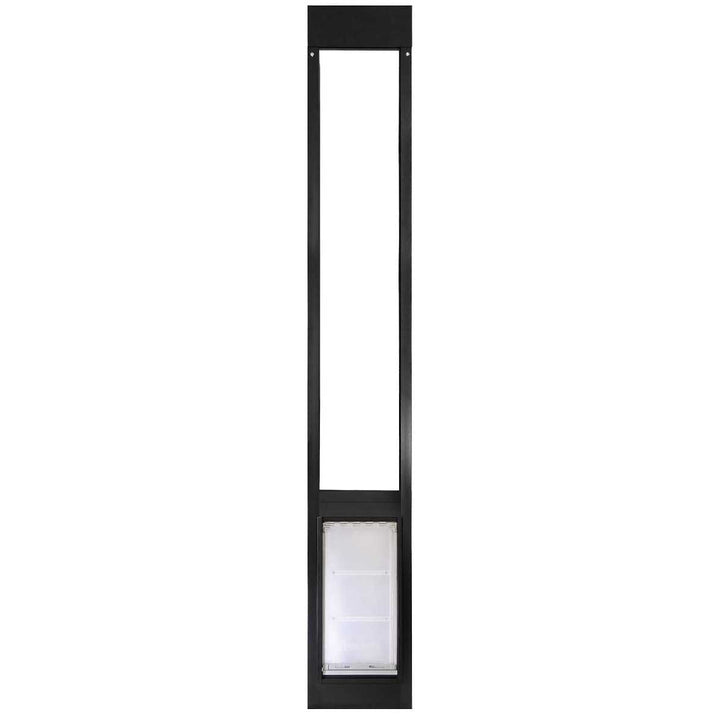

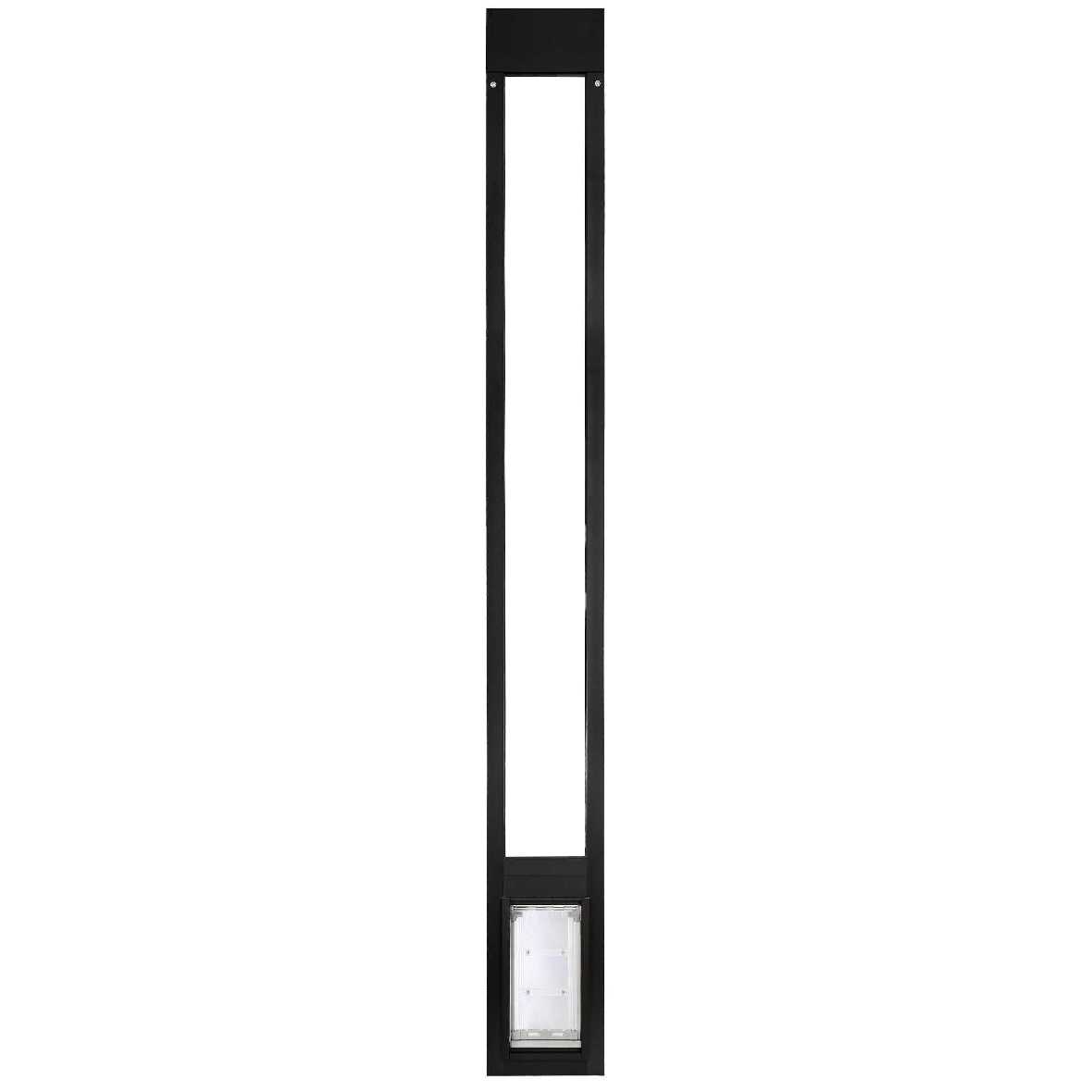

Endura Flap Thermo Panel with Dual-Pane Glass
- Insulated dog door designed for aluminum sliding glass doors, with three standard adjustment ranges and custom height options.
- Easy to install removable panel that fits into sliding glass door track without semi-permanent installation.
- 1/2" clear, insulated, dual pane Low E safety glass for max energy efficiency
- Durable aluminum frame and environmentally-friendly polyolefin polymer flap withstand extreme climates.

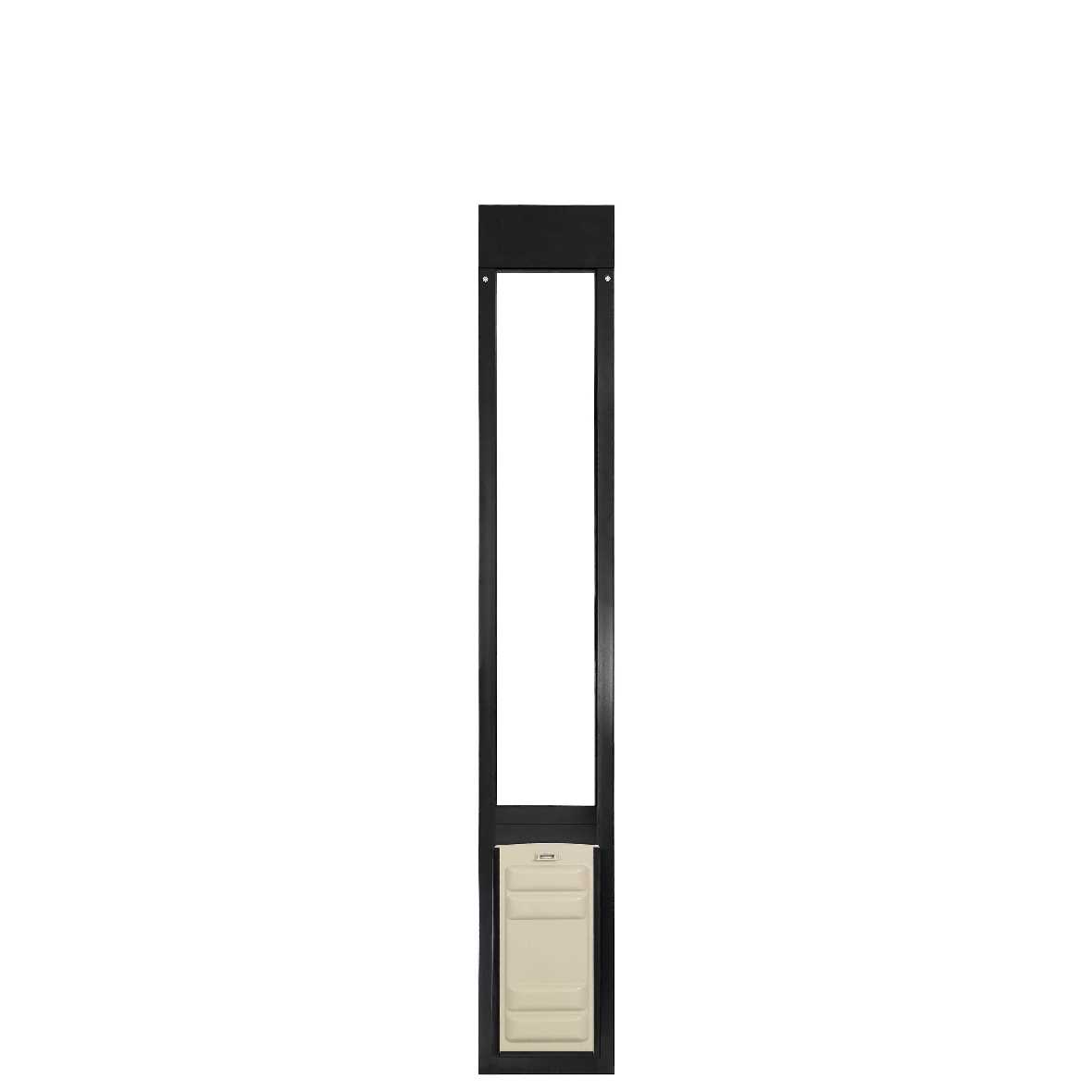

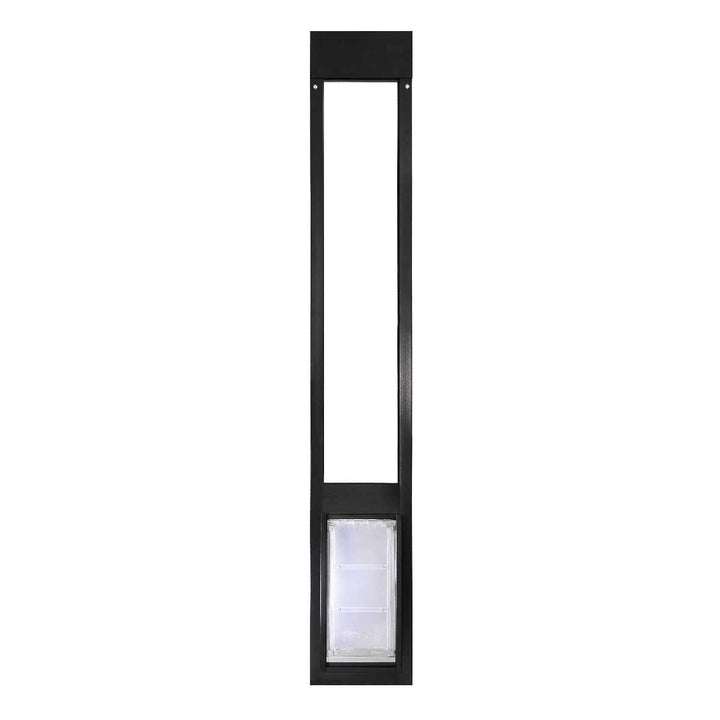

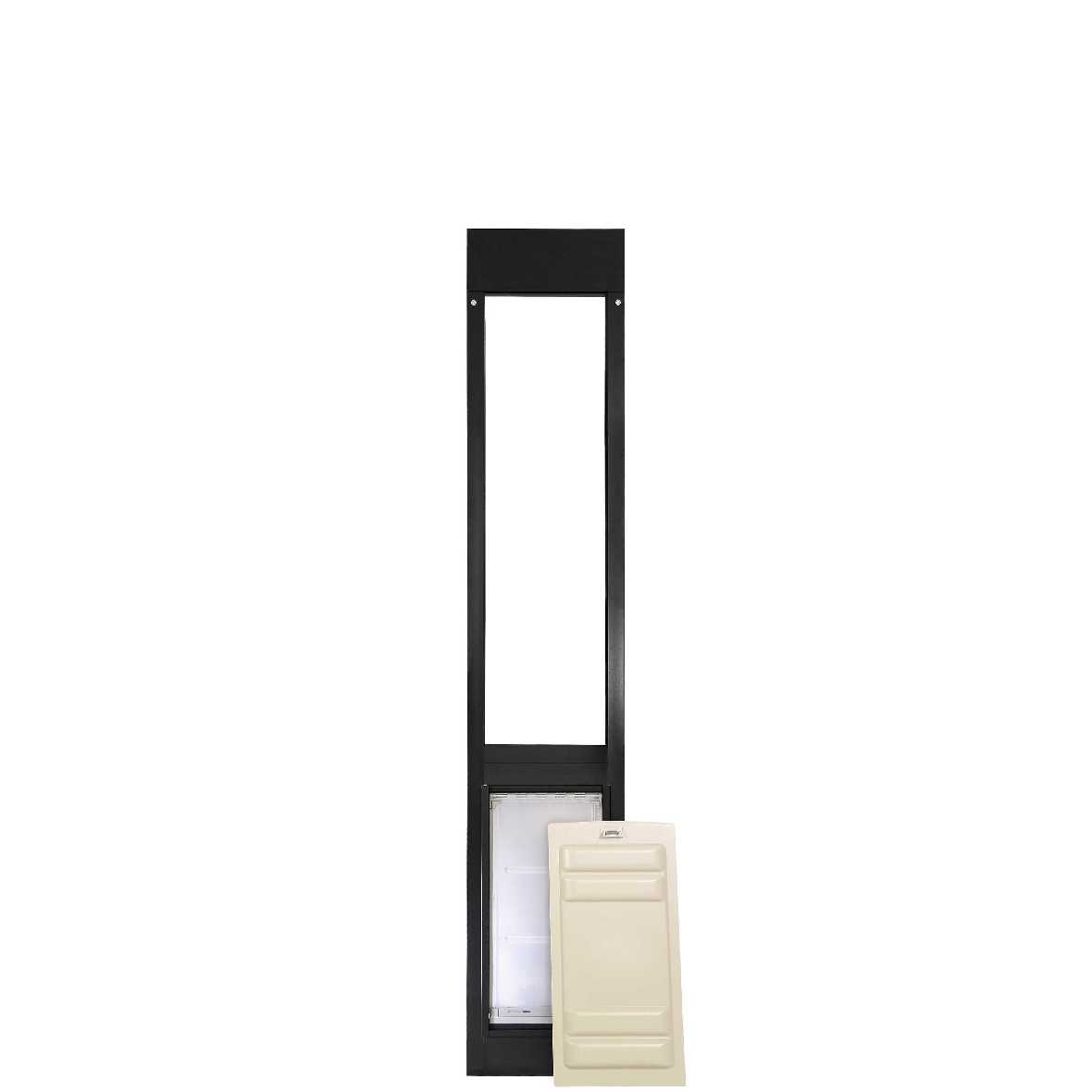

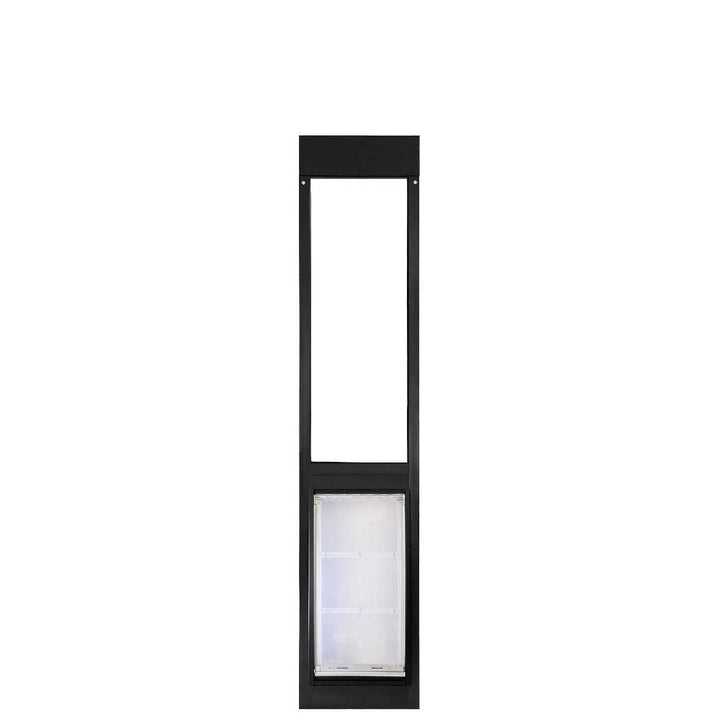

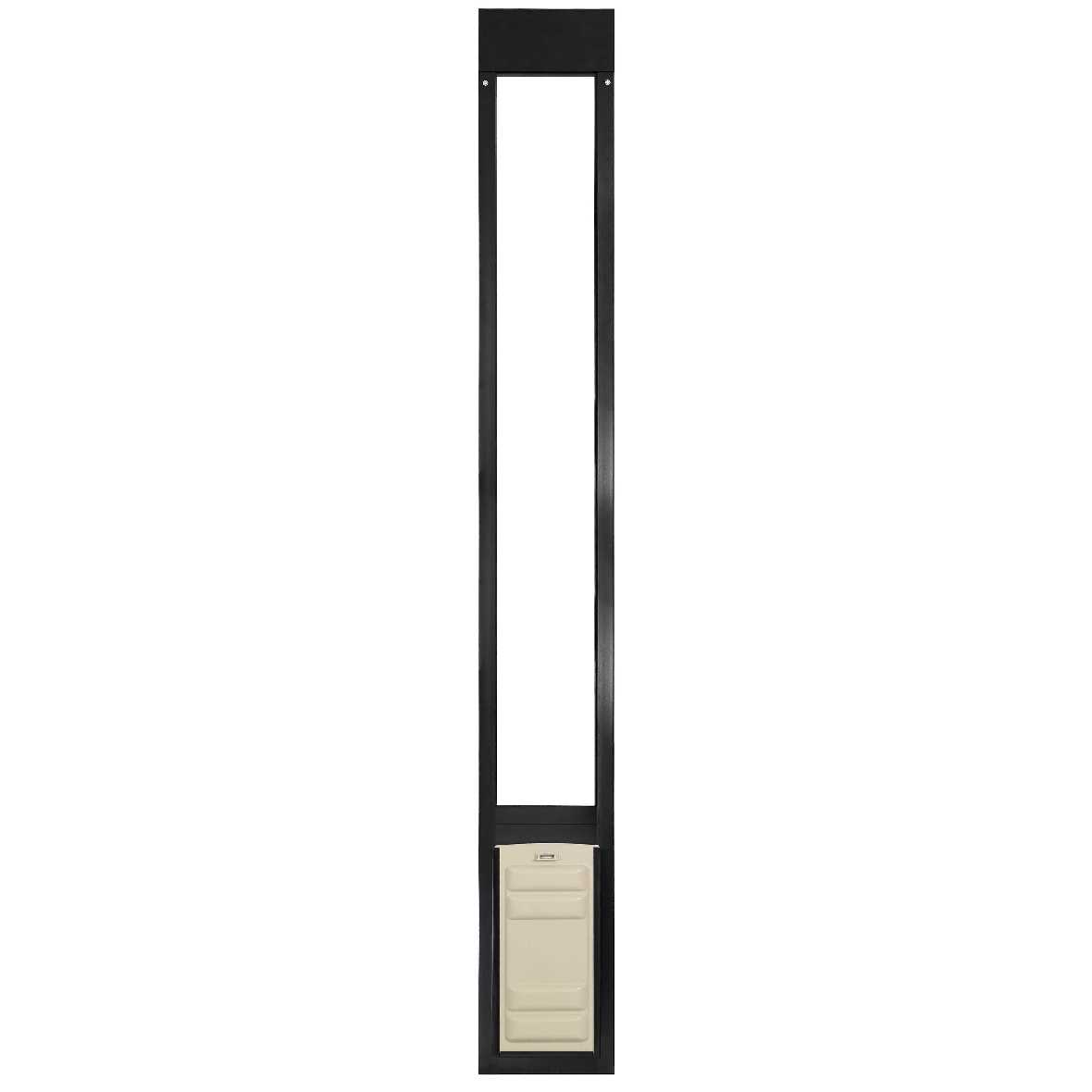

- Available in white, black, and brushed aluminum to match your interior design.
Made to Order | Ships in 3-5 Weeks | Custom Order Are Non-Returnable
Product Details
The Endura Flap Thermo Panel 3e with Dual Pane Glass is a premium dog door designed specifically for aluminum sliding glass doors. This insulated sliding glass door doggy door features an easy-to-install removable panel that effortlessly fits into your sliding glass door track, providing a perfect solution for homeowners, renters, and vacation homes. Available in white, black, and brushed aluminum, the Thermo Panel 3e seamlessly blends with your interior design.

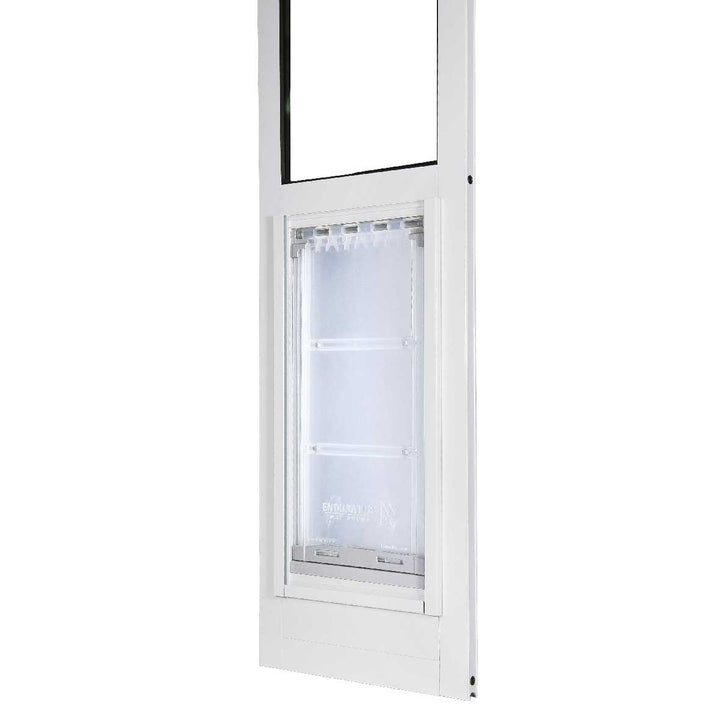

Constructed with a heavy-duty aluminum frame and an environmentally-friendly polyolefin polymer flap, the Endura Flap Thermo Panel 3e is built to withstand extreme climates. The 1/2", dual pane, Low-E safety glass not only improves energy efficiency but also reduces infrared and ultraviolet light, providing your home with added insulation and protection. The flap remains flexible in temperatures as low as -40 degrees Fahrenheit, ensuring smooth operation in any weather.
Not only is the flap available in four sizes, but the tall height-to-width ratio makes it easier than ever to find a size that fits not only the tallest of your dogs but also the smallest of your cats. The magnets on the flap can also be removed to make it easier for timid pets to push the flap open.
Need extra insulation? The extra magnets can also be added to the flap to double the weather protection. The magnetic closure on three sides of the flap enhances storm and wind resistance, while the included C-Clamp lock and secure locking cover provide additional security and control for your pet's access. The Thermo Panel 3e is designed and engineered in the USA, ensuring top-quality construction and performance.

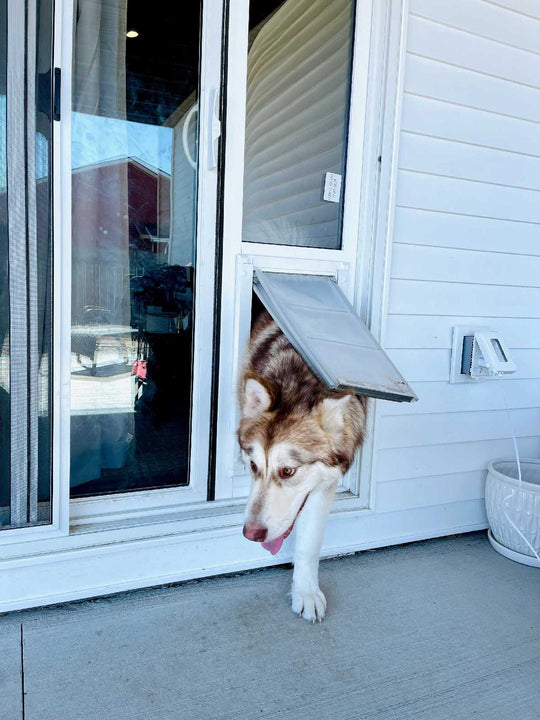

This Endura Flap dog door for glass sliding door provides your pet with the freedom to come and go as they please, while offering you peace of mind and energy savings.
Features:
- Supreme insulation with dual pane, Low-E clear safety glass and polyolefin polymer flap for energy efficiency.
- Heavy-duty aluminum frame ensures durability and compatibility with sliding glass door tracks at least 1" thick.
- Magnetic closure on three sides of the flap enhances storm and wind resistance.

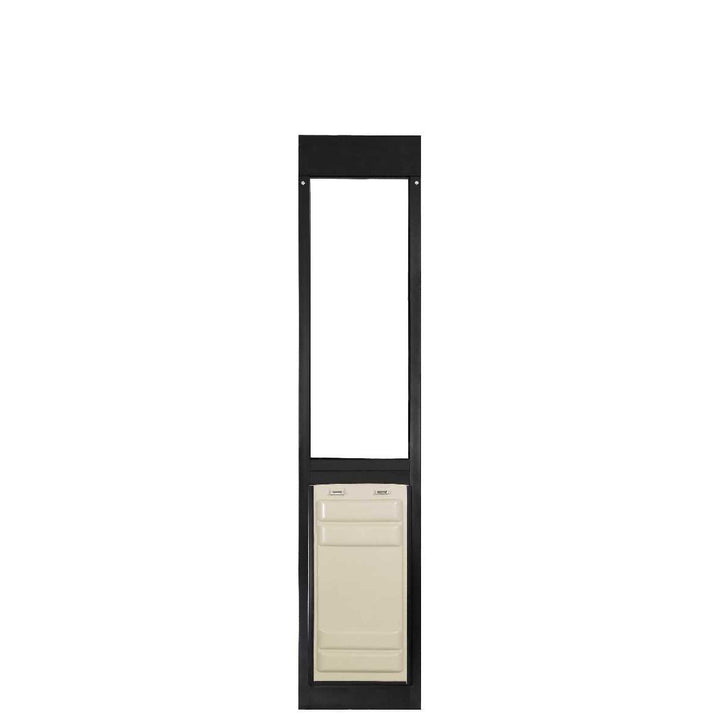

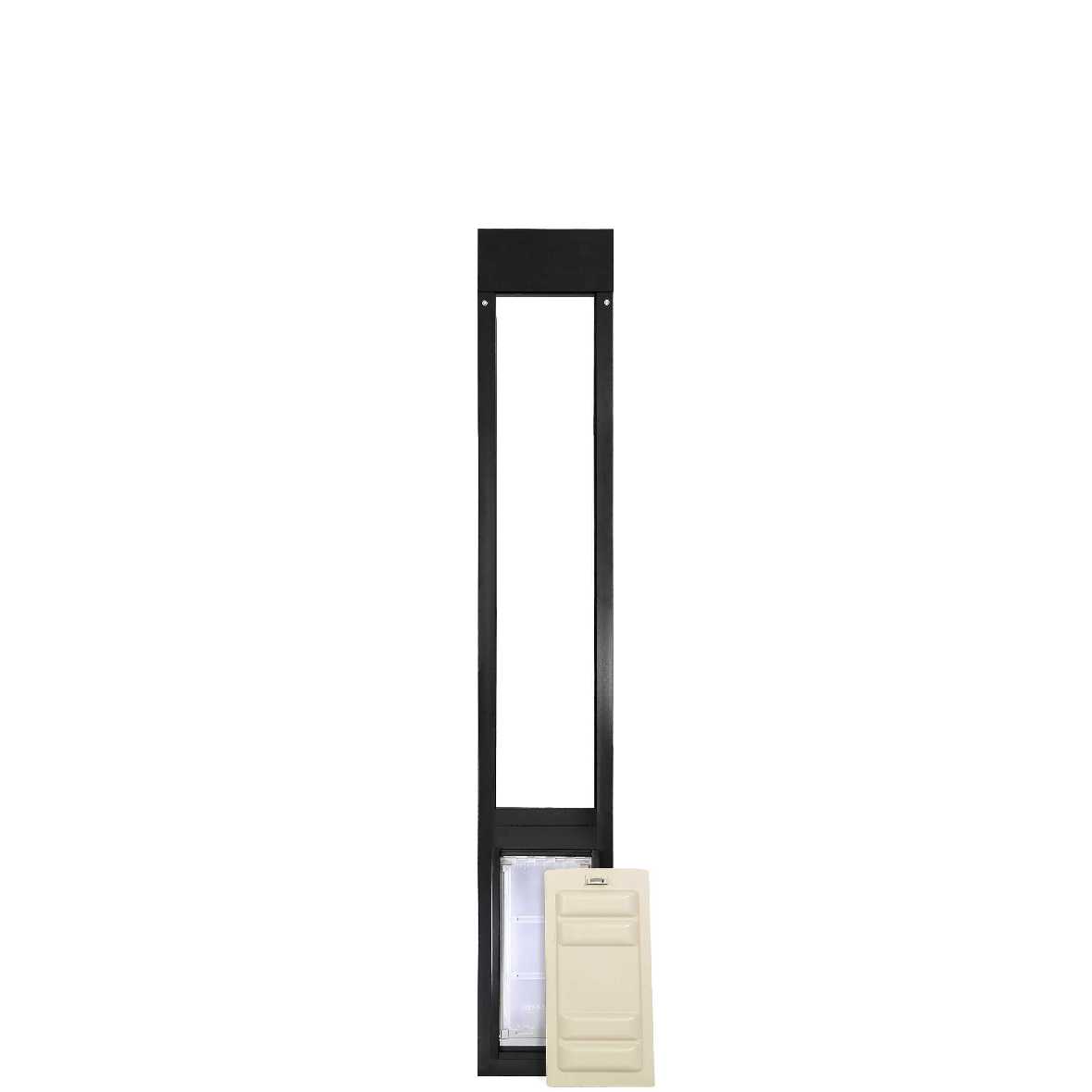

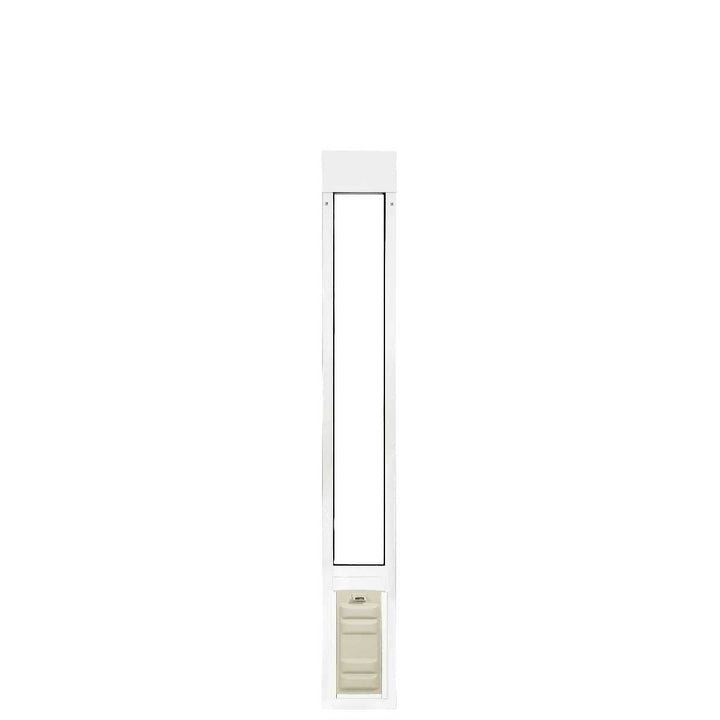

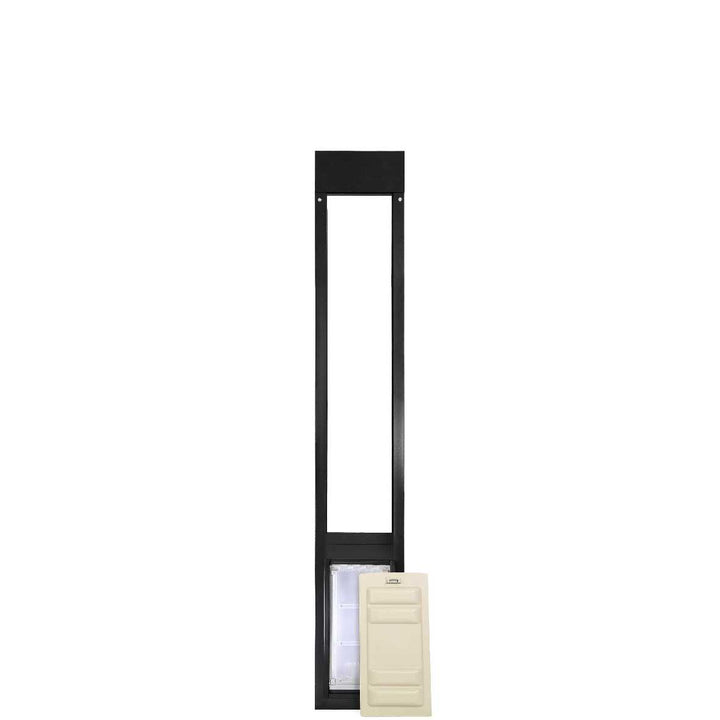

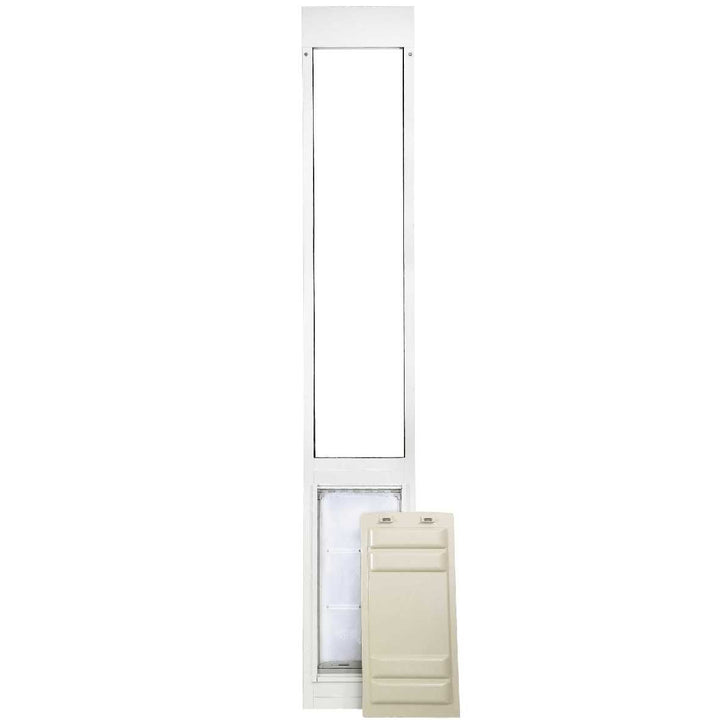

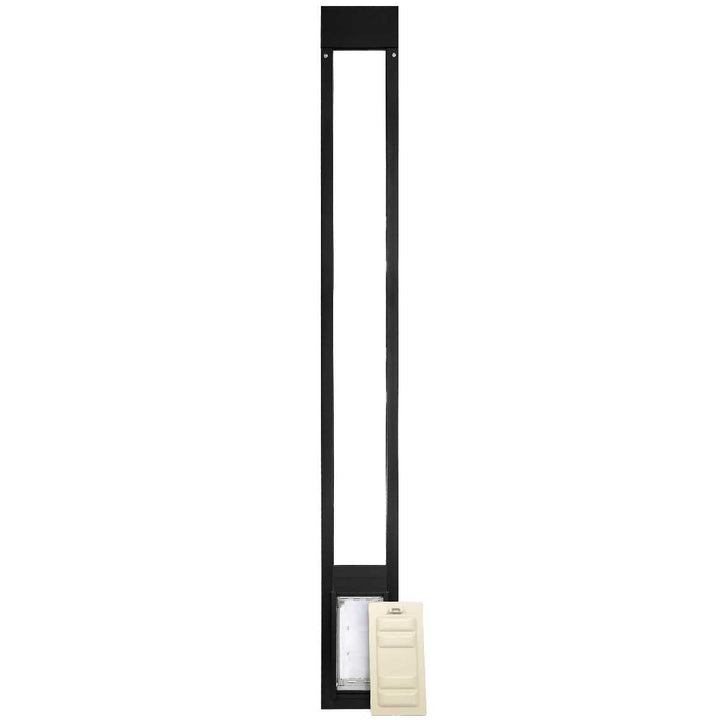

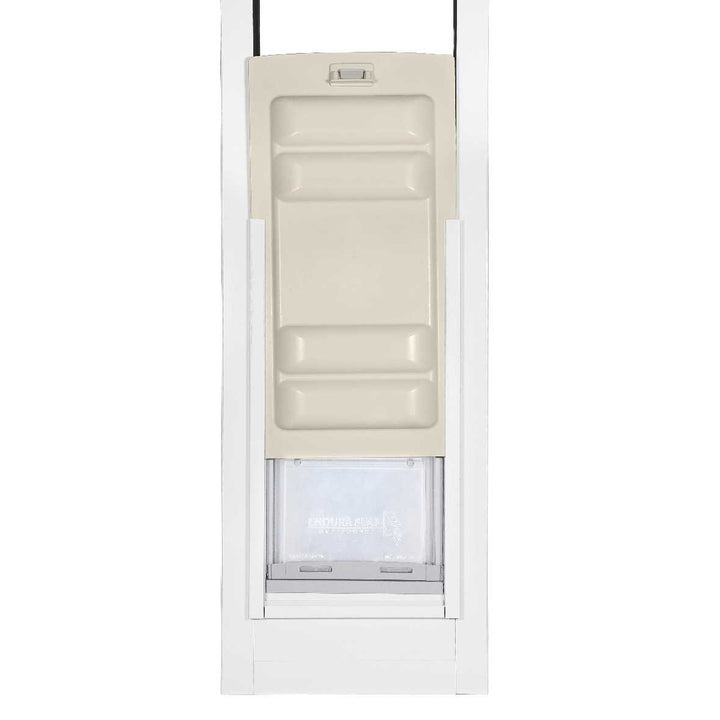

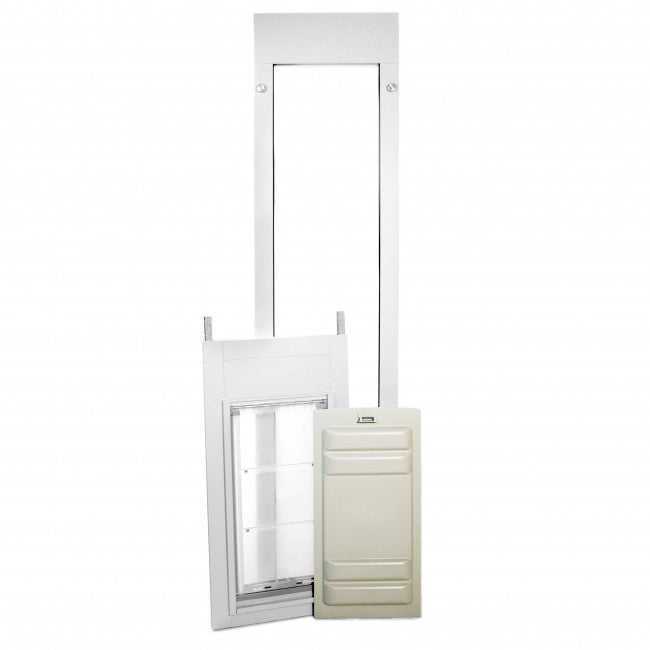

- C-Clamp lock and secure locking cover included for added security and control.
- Designed and engineered in the USA for quality and reliability.
Benefits:
- Easy installation with spring-loaded design allows you to remove the panel easily if need be. Great for rental or vacation homes
- Avoid having to cut holes in an exterior wall or through the sliding glass door

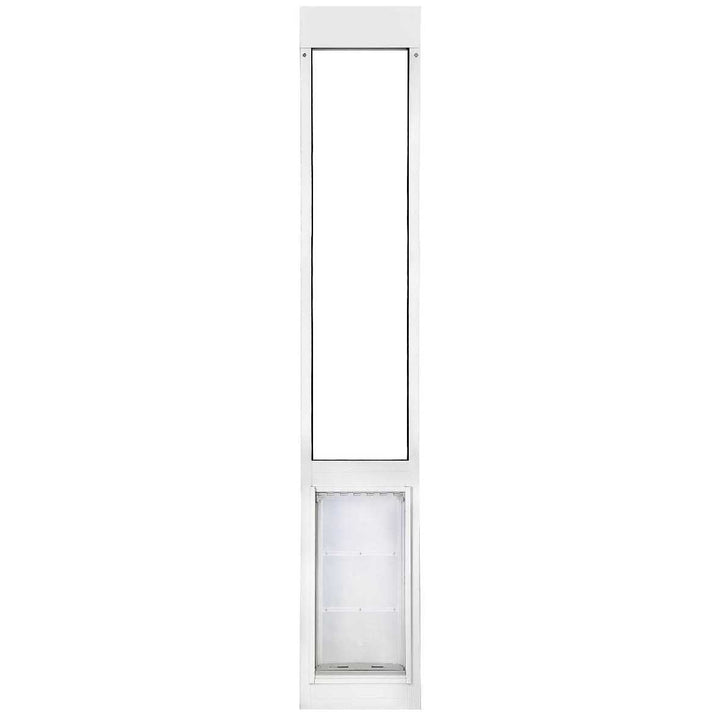

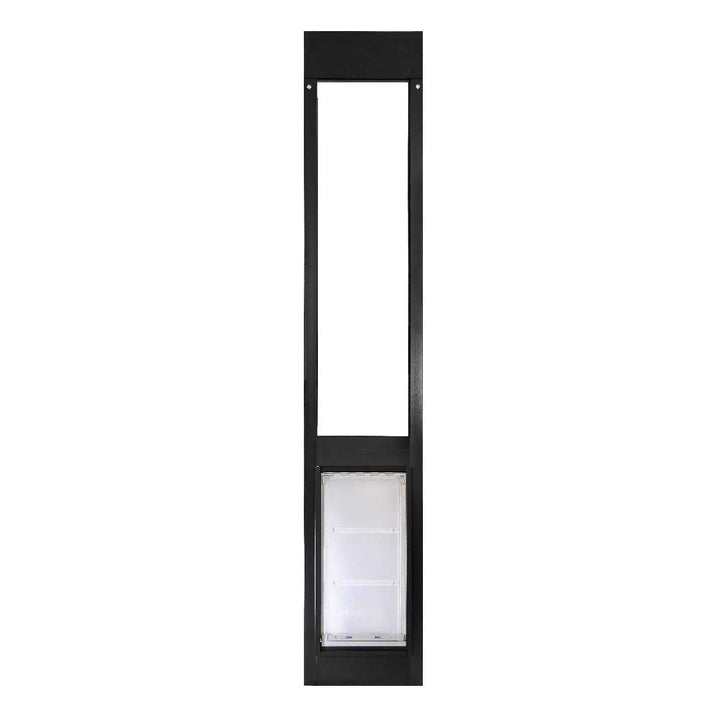

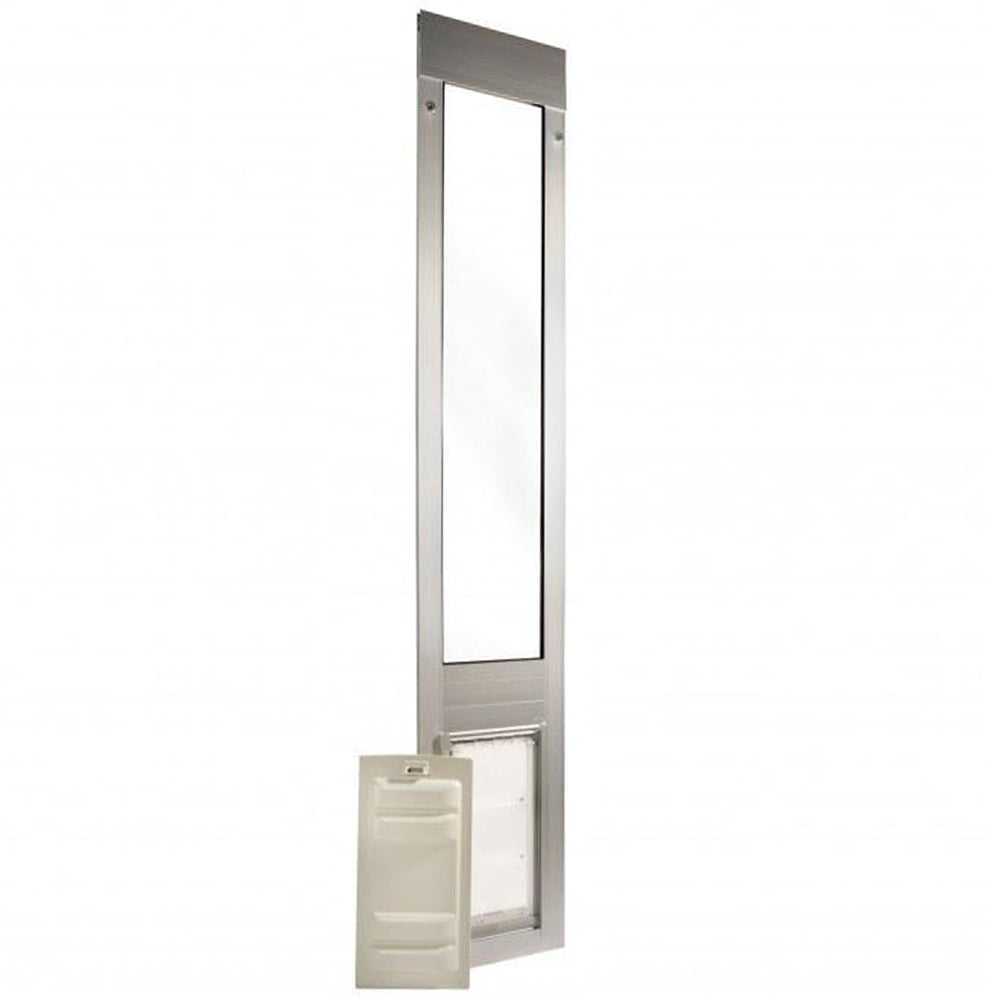

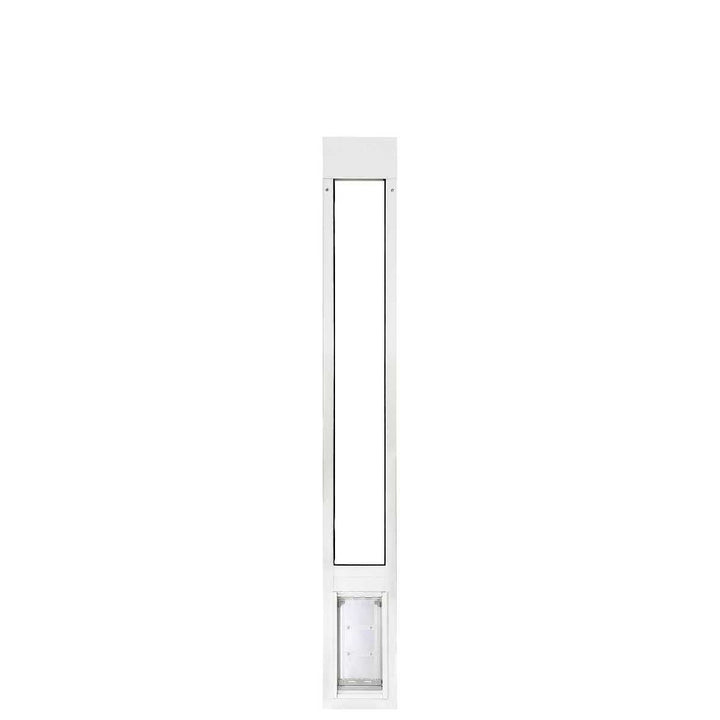

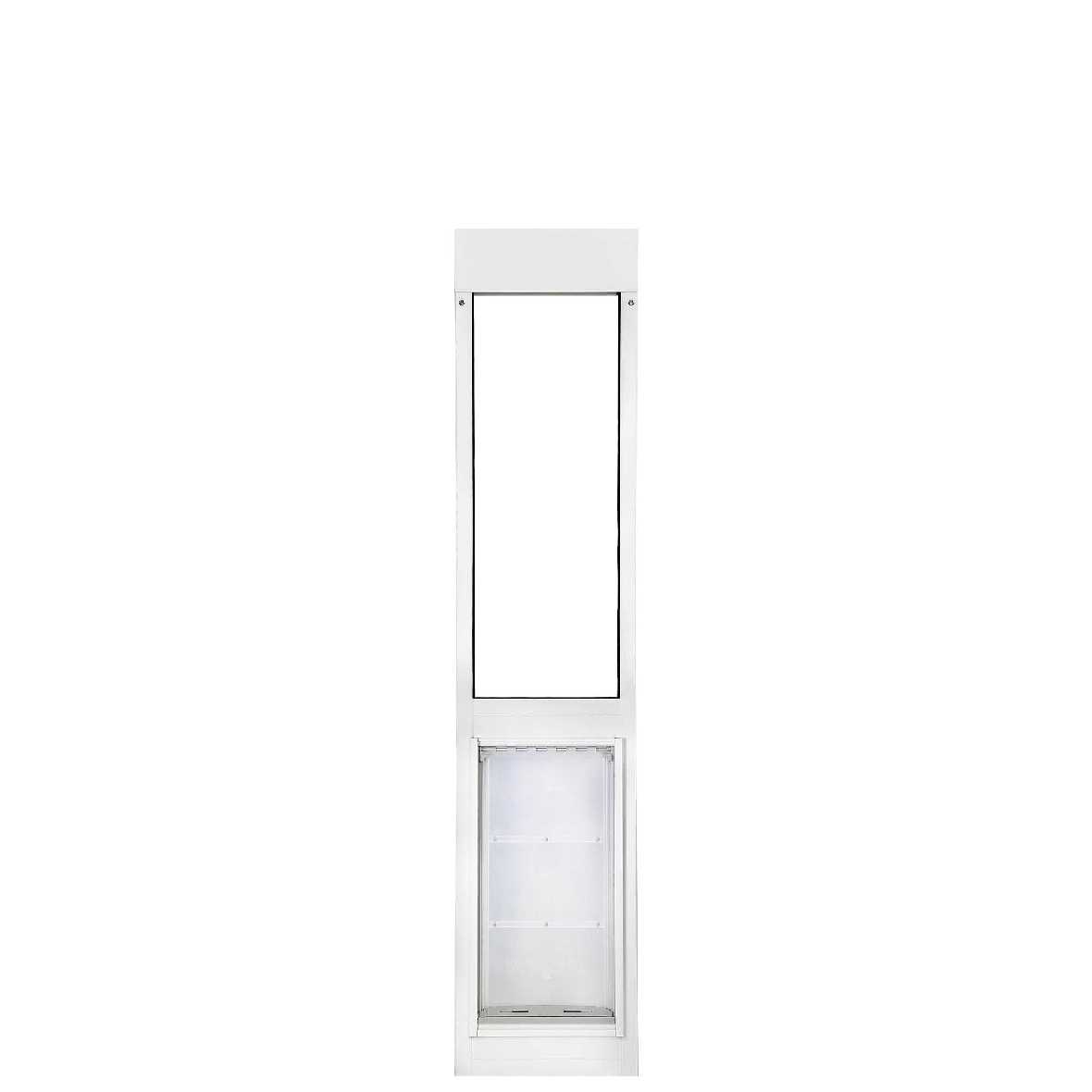

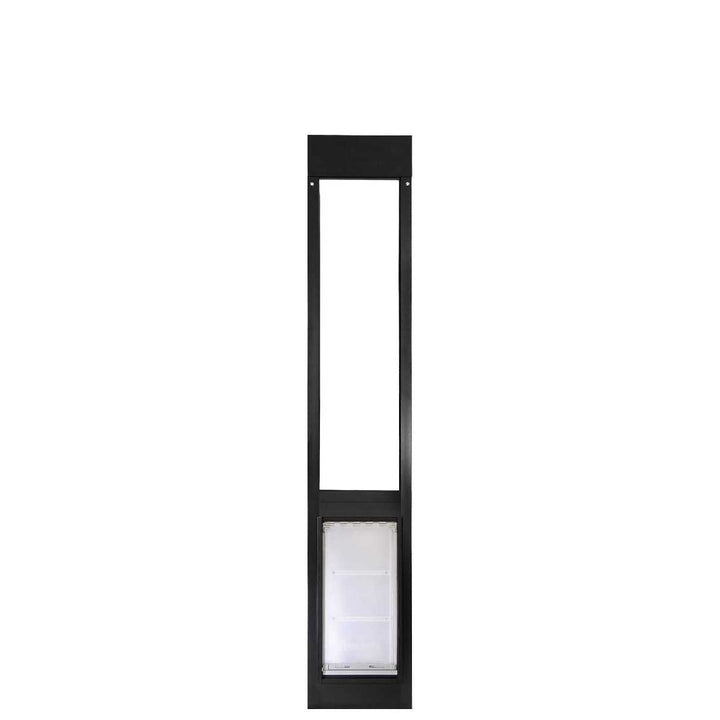

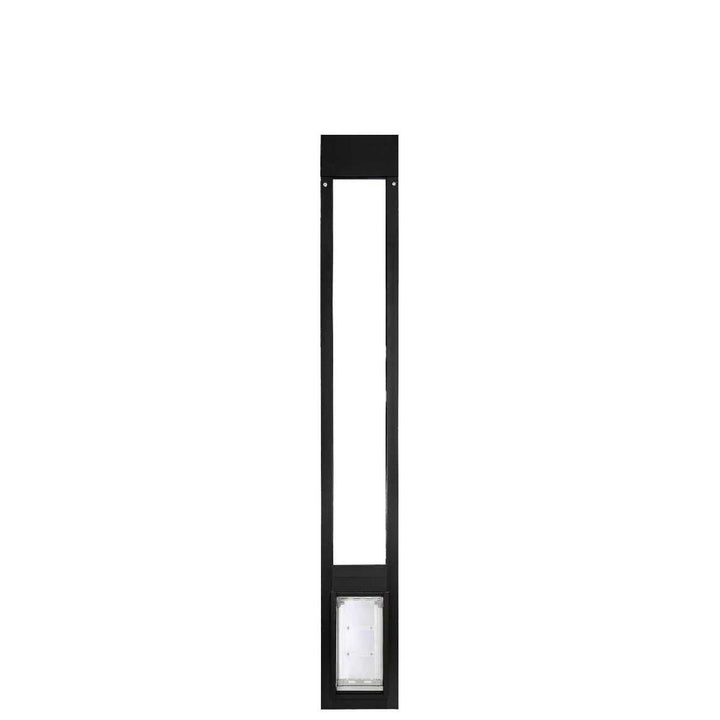

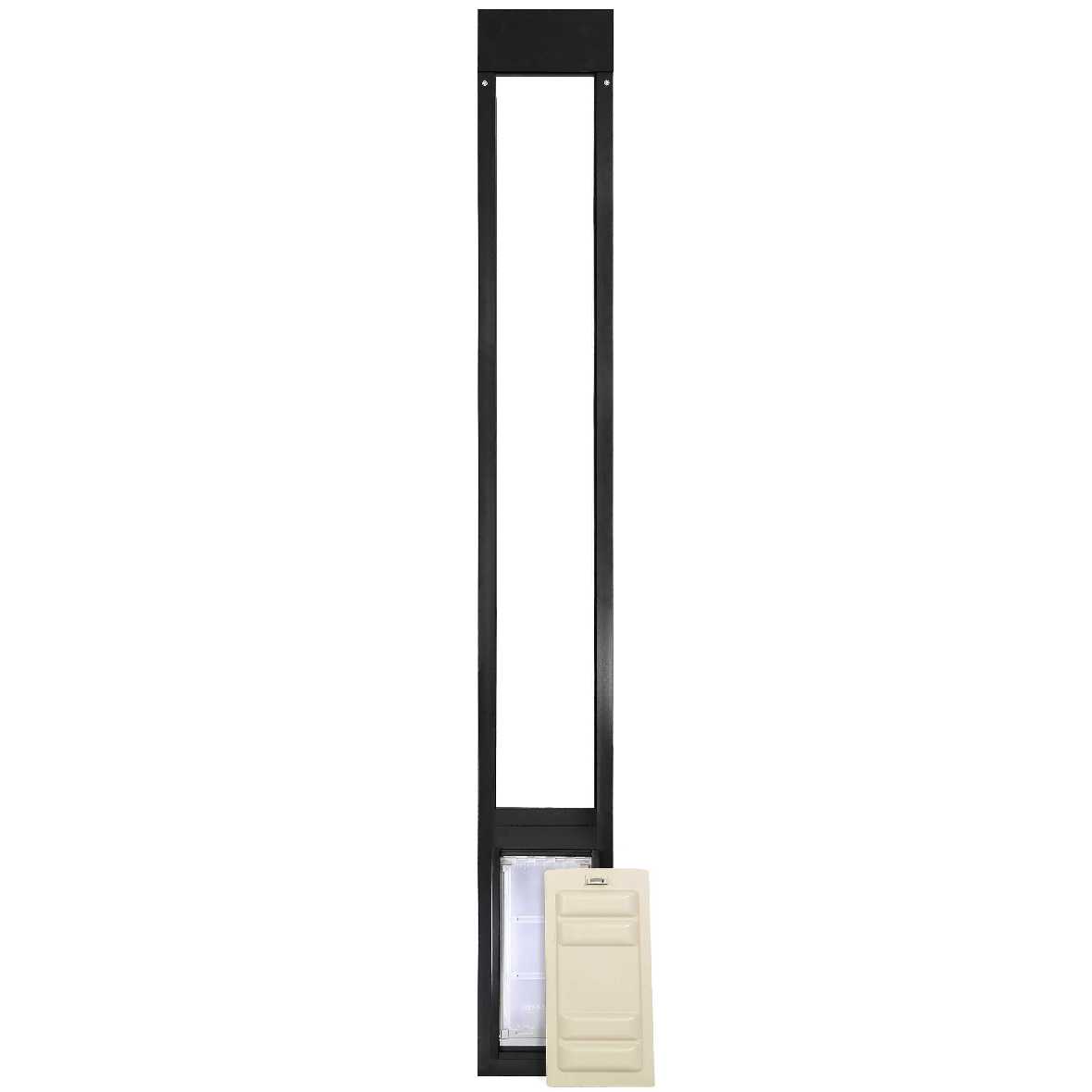

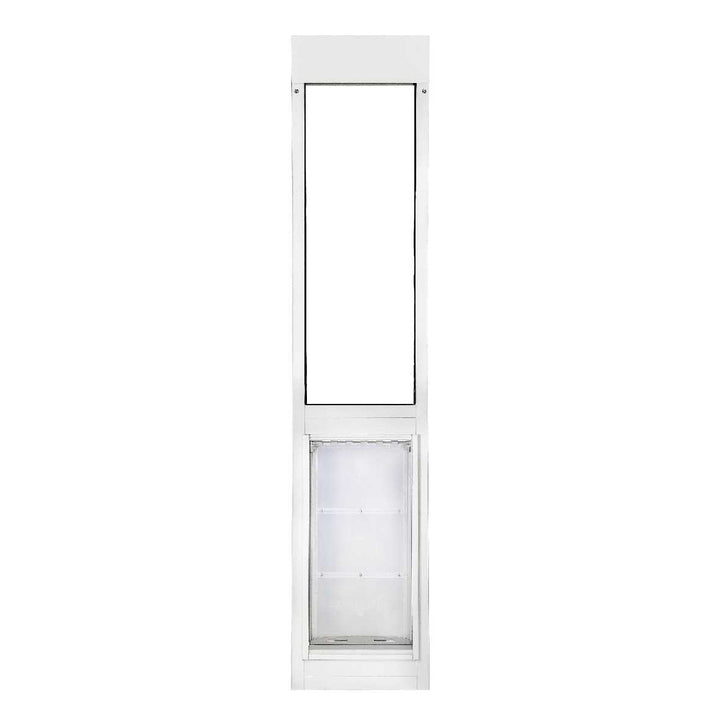

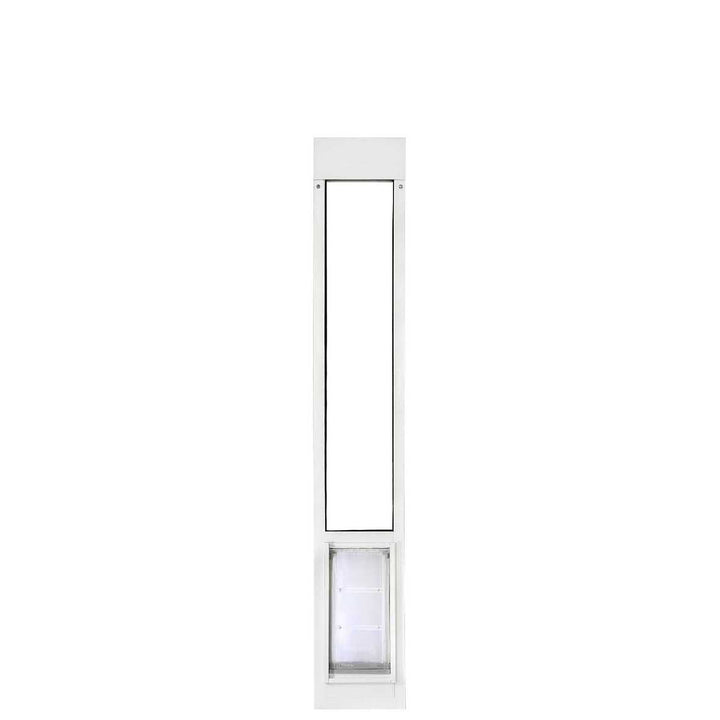

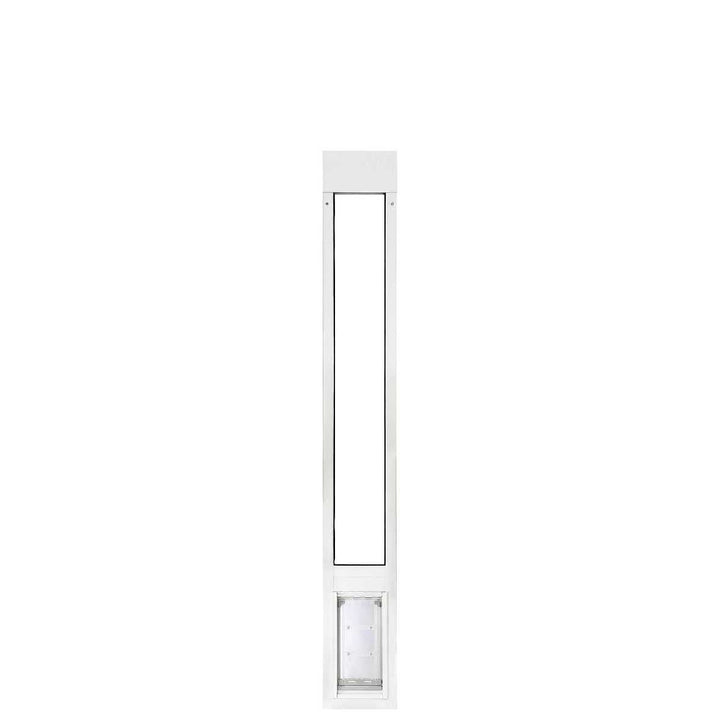

- The Thermo Panel comes in white (high-gloss), black (dark metallic tone) and brushed aluminum to match the interior design of your sliding glass door

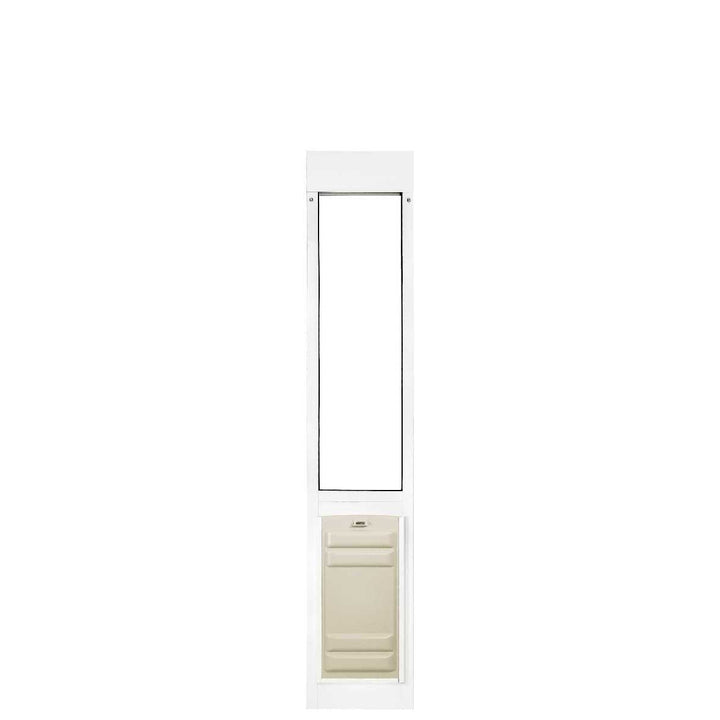

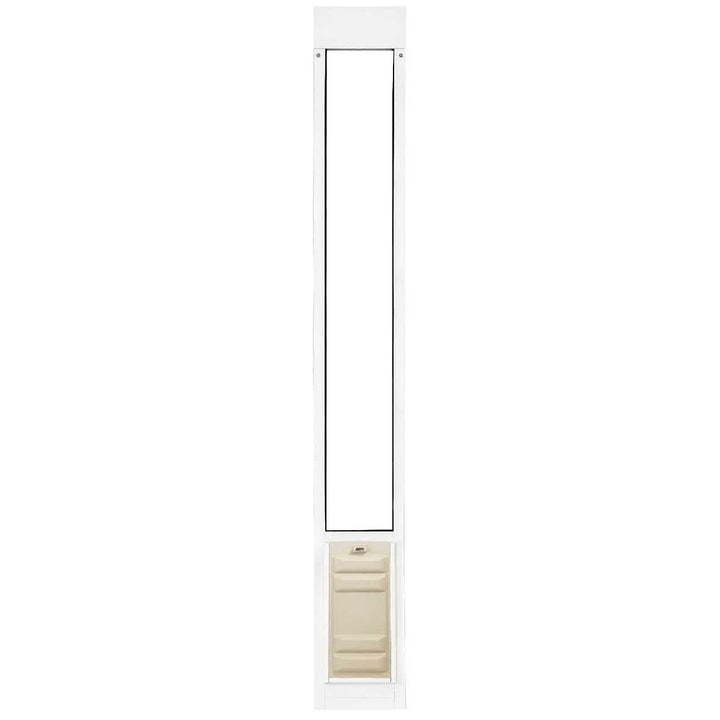

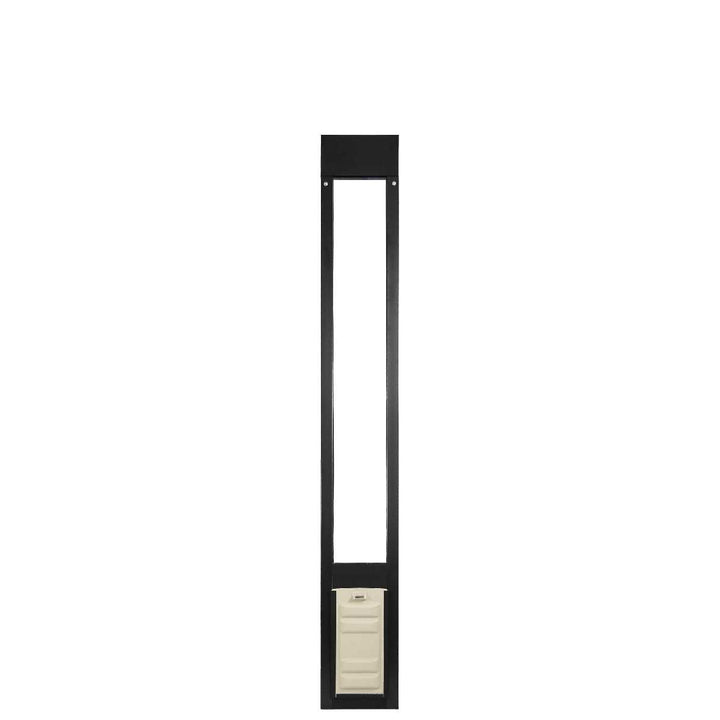

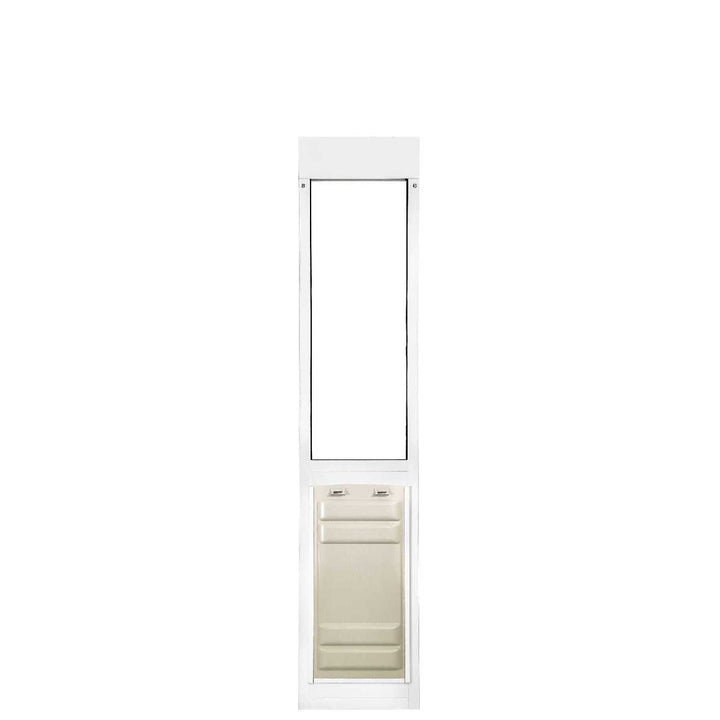

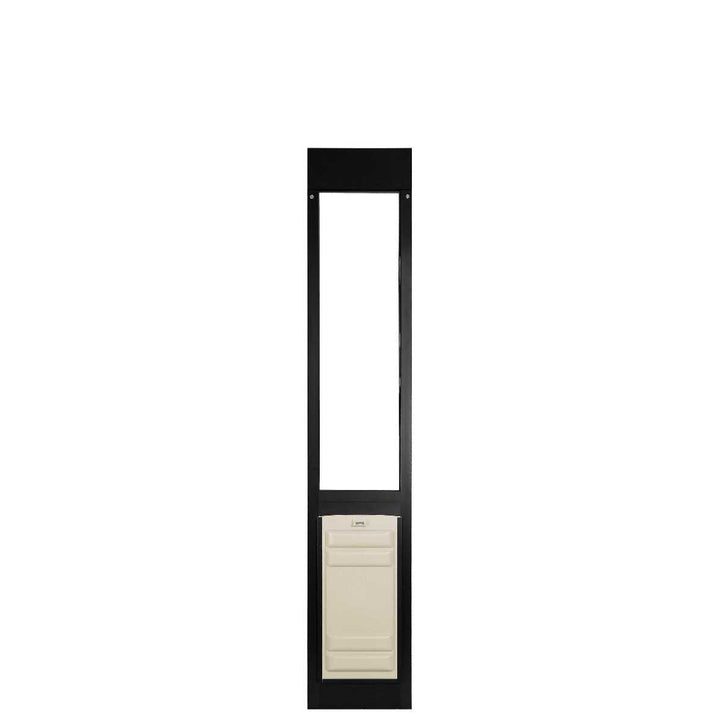

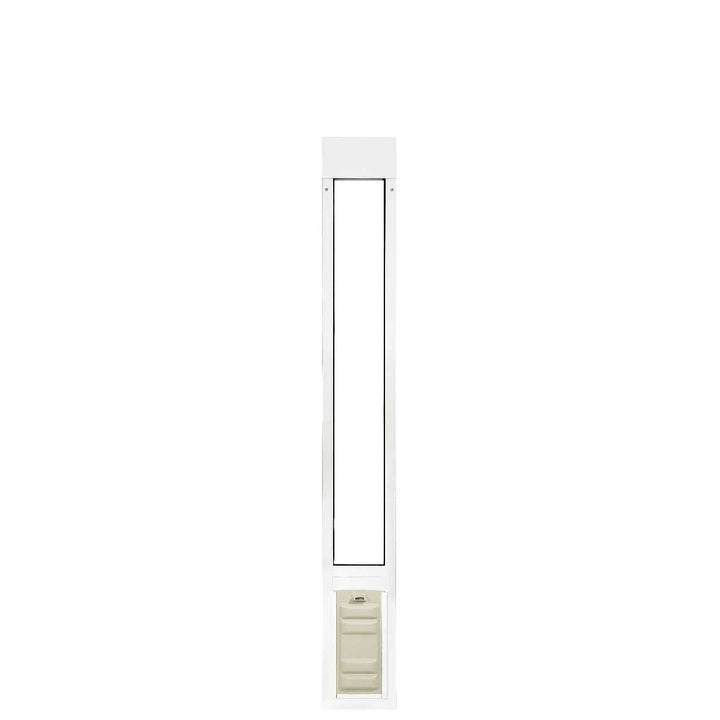

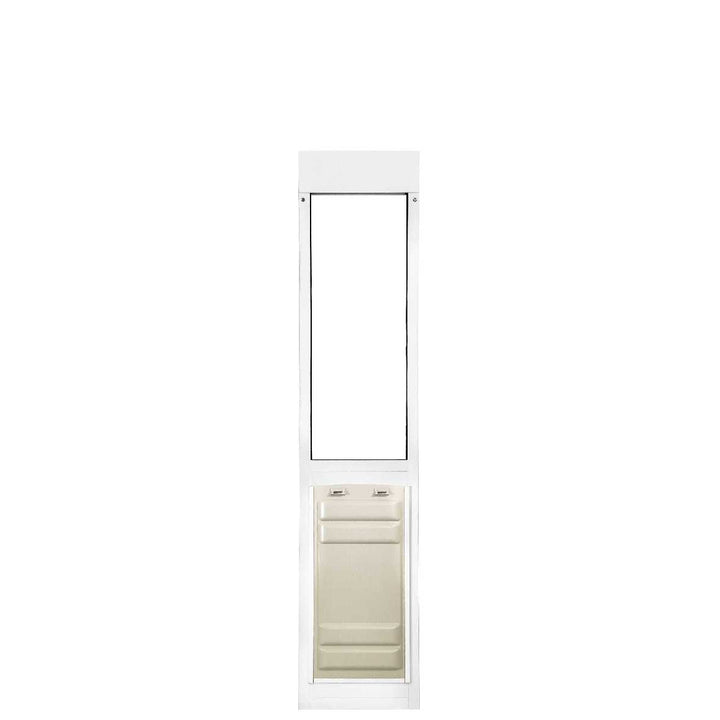

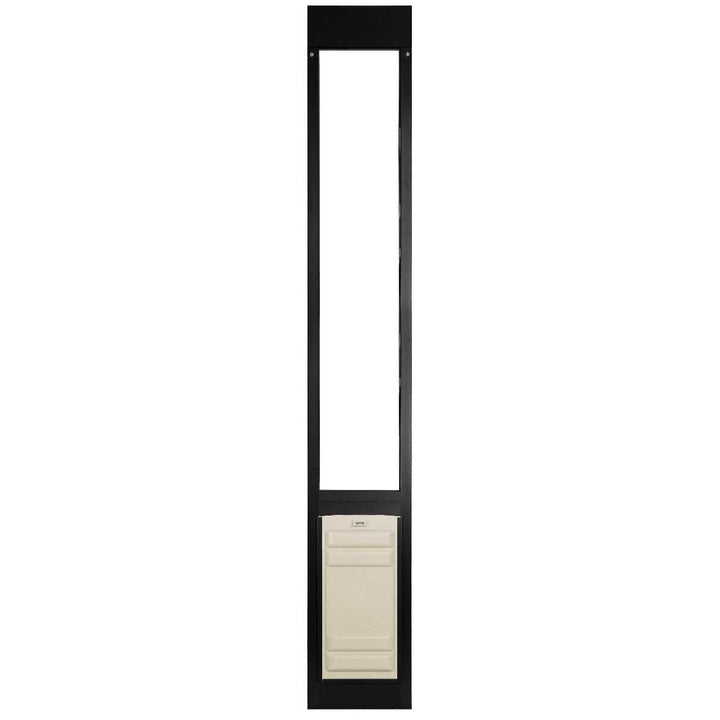

- Sturdy locking cover allows you to keep your pet inside/outside when need be, especially good for at night or if you want to keep the dog outside during the day when you are at work

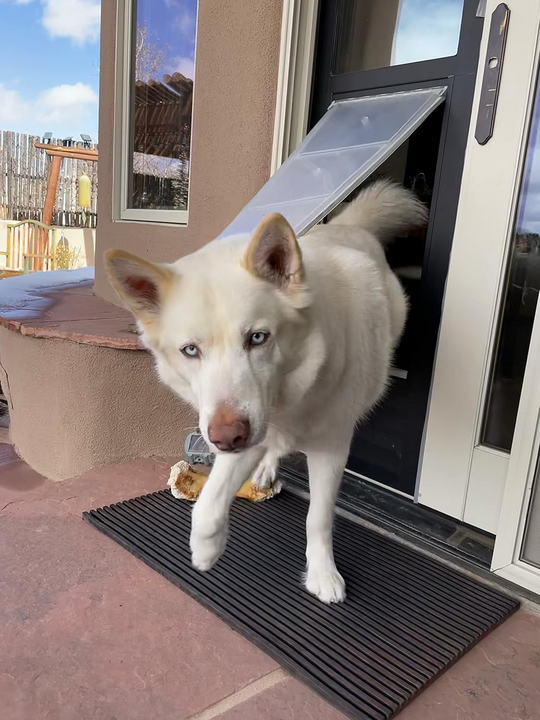

- Gives dogs and cats the freedom to come and go when you are not home
- Structurally sound design is built to last so you don't have to spend a fortune on replacement flaps

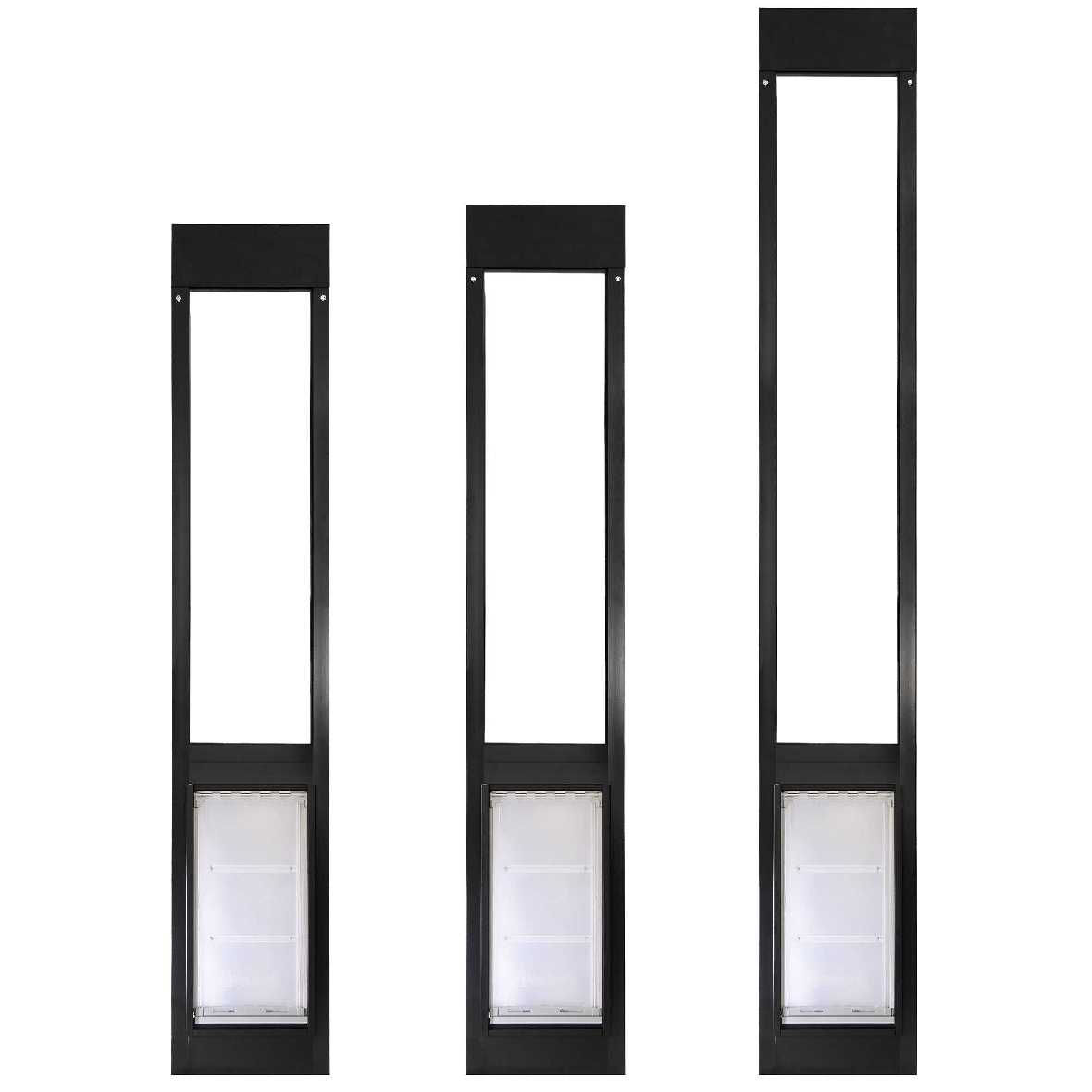

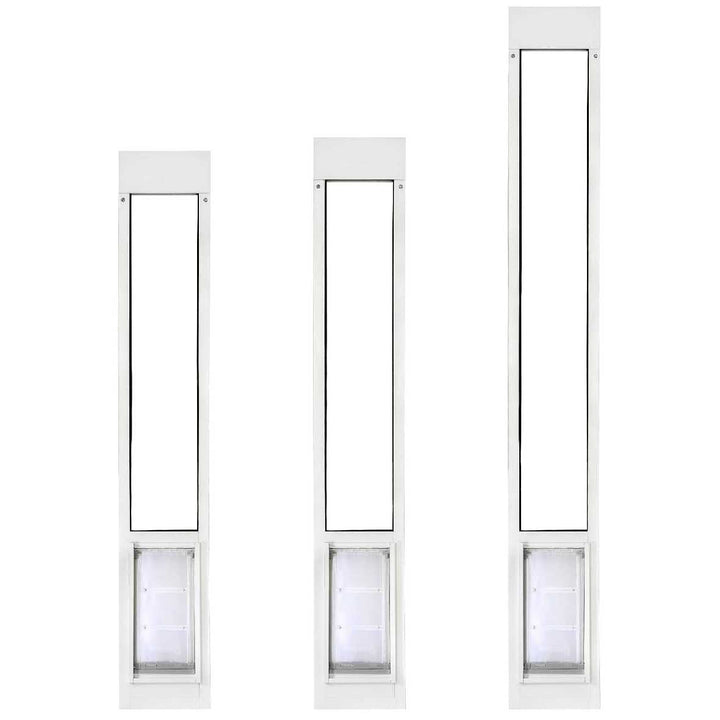

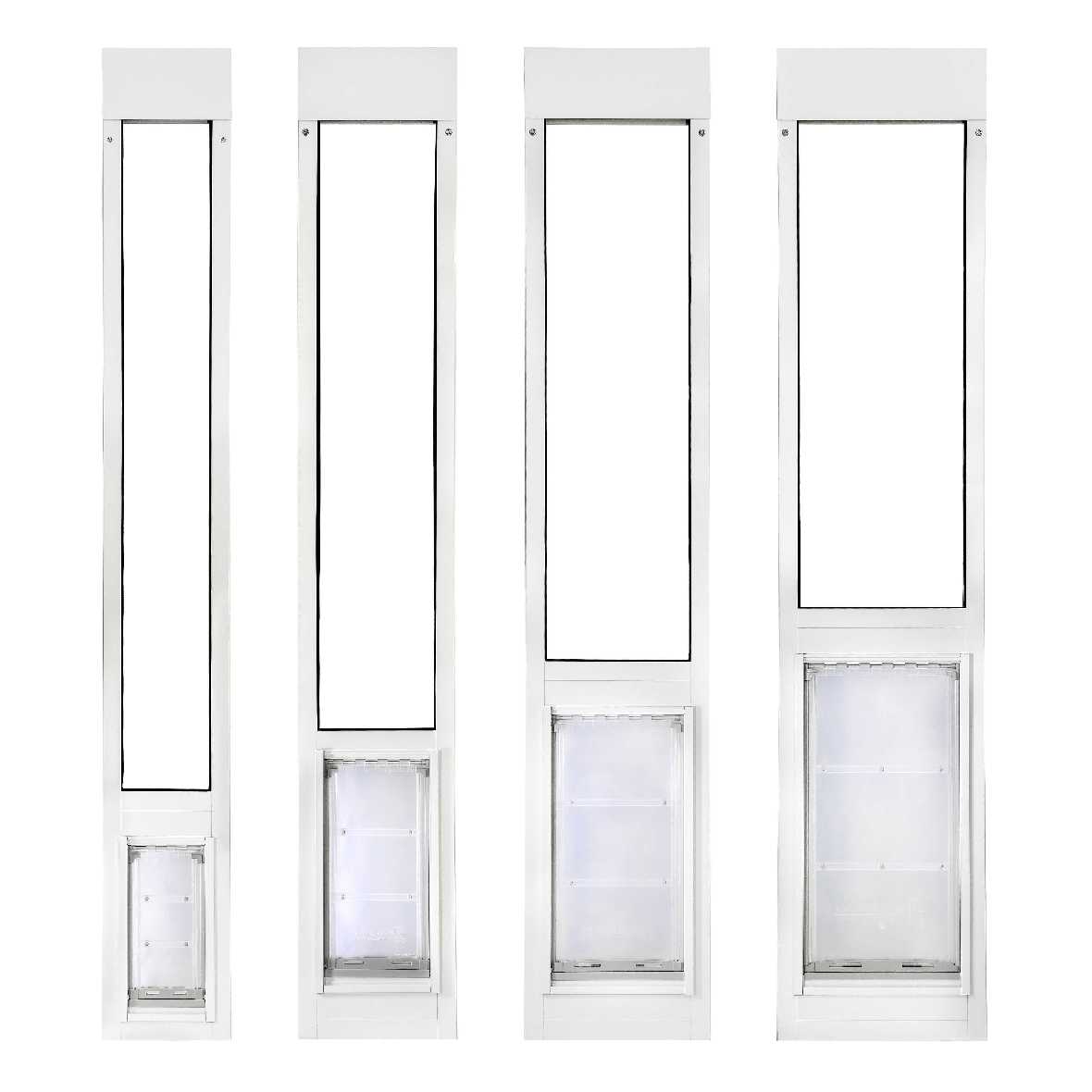

Size Chart
- Small 6"w x 11"h
- Medium 8"w x 15"h
- Large 10"w x 19"h
- Extra Large 12"w x 23"h
Flap Dimensions:
6"w x 11"h
The entry way your dog goes through.Overall Panel Width
10 3/16"
How wide your panel is.Step-Over Height
3” - 5”
The distance from the bottom of the panel to the bottom of your flap.Flap Dimensions:
8"w x 15"h
The entry way your dog goes through.Overall Panel Width
12 1/4"
How wide your panel is.Step-Over Height
3” - 5”
The distance from the bottom of the panel to the bottom of your flap.Flap Dimensions:
10"w x 19"h
The entry way your dog goes through.Overall Panel Width
14 1/4"
How wide your panel is.Step-Over Height
3” - 7”
The distance from the bottom of the panel to the bottom of your flap.Flap Dimensions:
12"w x 23"h
The entry way your dog goes through.Overall Panel Width
16 5/16”
How wide your panel is.Step-Over Height
3” - 7”
The distance from the bottom of the panel to the bottom of your flap.Flap Size | Flap Dimension | Step Over Range | Overall Panel Width | Recommended Pet Height |
---|---|---|---|---|
Small | 6" w x 11" h | 3" - 5" | 10-3/16" | 9" - 15" |
Medium | 8" w x 15" h | 3" - 5" | 12-1/4" | 9" - 21" |
Large | 10" w x 19" h | 3" - 7" (ships at 5") | 14-1/4" | 9" - 27" |
Extra Large | 12" w x 23" h | 3" - 7" (ships at 5") | 16-5/16" | 9" - 34" |
Don't know which pet door size to get? Here is measurement guide to help you out.
Track Height Adjustment range is based on the measurement of your sliding door track height from the lowest point of your track to the highest point. Each Endura Flap Thermo Panel 3e has a 3" adjustment range. Review our Track Measuring Guide video for additional, detailed information. If your measured track height is near the bottom of the adjustment range then you should review A Note of Caution
Find The Best Pet Door Size For My Pet
A
Pet Height: inches
B
Pet Width: inches
Installation Instructions
Parts
- Panel Pet Door
- Foam Weather Strip
- Center Post Weather Seal Draft Stopper
- Sliding Door C-Clamp Lock
- Screwdriver
Tools
- Flathead Screwdriver
Please read instructions & notes thoroughly before installation.
One-Piece Panel
Step 1 Adjust the Step Over (Optional)
- The top of the flap should be positioned to be at least 1” above the top of the pet’s shoulder.
- If the factory setting is not suitable, please adjust it before proceeding. If the current setting is suitable, proceed to the “Installation Instructions” section.
Step 2 Adjust the Screws
- Lay the entire panel on a flat surface.
- Using a #2 flat head screwdriver, remove the bottom side-screws and loosen the upper side-screws. Screws were tightly installed to hold the panel together during shipping; a power tool* is recommended.
Step 3 Adjust the Spacers
- Once the bottom screws have been removed and the upper side-screws loosened, the Pet Door Assembly and spacers can be removed by sliding the sections down and out of the panel.
Step 4 Replace the Spacers
- Replace the spacers and the Pet Door Assembly by sliding them back in a different order to achieve the desired height. You can move the spacer below and above the flap to raise or lower the flap height.
Step 5 Tighten the Screws
- When finished, replace the bottom side-screws and tighten the next upper-side screws.
Step 6 Unlock Spring Mechanism
- Loosen the height adjustment locks at the top of the pet panel with the screwdriver. This allows the spring mechanism to move freely up and down.
Step 7 Test Fit the Panel in Your Track
- To insert the panel into the top track, push up against the spring mechanism and swing the bottom of the panel up and over the threshold.
- Seat the panel on top of the small guide rail in the track.
Step 8 Apply the Weatherstripping
- Once you’re sure the panel fits, remove it from the frame and lay it on its side on the ground.
- Apply the foam weather-stripping by peeling back the paper and exposing the adhesive.
- Unroll it along the edge of the panel, pressing to ensure it adheres. Install on both sides, trim it fit with scissors.
Step 9 Install the Draft Stopper
- The center post weather seal strip (draft stopper) should be installed on the inside of the home.
- Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
- Repeat step two to install the panel in your track.
Parts
- Top Glass Panel Section
- Bottom Flap Section
- Foam Weather Strip
- Center Post Weather Seal Draft Stopper
- 4 Flathead Screws
- Flathead Screwdriver
- Screwdriver for Adjustment Locks
- Sliding Door C-Clamp Lock
Tools
- Flathead Screwdriver
Please read instructions & notes thoroughly before installation.
Two-Piece Panel
Step 1 Adjust Step Over Height (Optional)
- The top of the flap should be positioned to be at least 1” above the top of the pet’s shoulder.
- If the factory setting is not suitable, please adjust it before proceeding. If the current setting is suitable, proceed to the “Installation Instructions” section.
Step 2 Rearrange the Pieces (Optional)
- Simply slide the pieces up and out from the bottom half of your panel to rearrange.
- Loosen a bottom screw if the pieces are too snug to move.
Step 3 Reconnect the Pieces (Optional)
- Replace the spacers and the Pet Door Assembly by sliding them back in a different order to achieve the desired height.
- You can move the spacer below or above the flap to raise or lower the flap height.
Step 4 Screw the Pieces Together
- The order of the pieces is important! The piece on the bottom needs to always be at the bottom, as that is where the screws attach. You can now assemble the patio panel!
Step 5 Align the Connectors
- Remove the 2 flat head sectional connector screws from the exposed part of the connector on each side.
- Align the aluminum connectors extending from the bottom flap panel section with the top glass panel section.
- Press the aluminum connectors into the holes at the bottom of the top glass panel section.
- Ensure locking cover & height adjustment locks are on the same side!
Step 6 Tap the Pieces Together
- Gently tap the bottom surface of the panel against the ground to completely insert the connectors.
- Protect hard surfaces to prevent scratching.
- The components of the panel are designed to slide together very tightly.
Step 7 Secure the Sections
- Fasten the two panels together using the four flathead screws.
- Use the included flathead screwdriver to tighten all four flathead screws so the two halves of the door are pulled together.
Step 8 Adjust Spring Mechanism
- Loosen the height adjustment locks at the top of the pet panel. This allows the spring mechanism to move freely up and down.
Step 9 Test Fit the Panel in Your Track
- To insert the panel into the top track, push up against the spring mechanism and swing the bottom of the panel up and over the threshold.
- Seat the panel on top of the small guide rail in the track.
Step 10 Apply the Weatherstripping
- Once you’re sure the panel fits, remove it from the frame and lay it on its side on the ground.
- Apply the foam weather-stripping by peeling back the paper and exposing the adhesive.
- Unroll it along the edge of the panel, pressing to ensure it adheres. Install on both sides, trim it fit with scissors.
- Repeat step two to install the panel in your track.
Step 11 Install the Draft Stopper
- The center post weather seal strip (draft stopper) should be installed on the inside of the home.
- Trim with scissors as needed. Clean the edge of your patio door with rubbing alcohol before installing to assure a good seal.
Adjusting Stepover Height
Lock Details
Since you cannot lock your sliding door to your panel pet door, we have provided you with alternative locking methods to secure your home:
Installing the sliding door clamp: This clamp has a screw that tightens by hand to prevent the sliding door from moving beyond the clamp’s placement. For doors manufactured with the glass slider on the inside track, the lock can usually be installed on the door’s raised track.
If you aren’t able to use the lock that comes with the panel: A great alternative to locking your sliding glass door is a Charley bar or dowel in the track. Both work off the same concept – they block the slider from opening. When engaged you cannot pull the sliding door away from the pet door panel.
Other Installation Options
Semi-Permanent Installation:
You might choose to secure the panel in your track with screws. This can be done by drilling screws at an angle in the top and bottom tracks. We recommend doing this from the outside to minimize damage to the sliding glass door frame. One-way screws will prevent tampering or removal of the panel from the outside.
Stationary Panel:
Some stationary sliding door panels can be unfastened and moved over to one side so that you can install the pet door panel between the jamb and stationary panel.
Avoid damaging your sliding glass door by checking that your door can move and that you can reinstall it properly before trying to uninstall the unit.
You will still lose space in your slider to move through, however, you will be able to use your existing sliding door lock to secure your home. Installing your pet door this way is also great in that you already have an alarm system in place.
If your sliding glass door slides on the outside track, using an alternative lock might not be possible, so this allows you to still lock your door.
NOTE: You can do the stationary panel install with the regular spring actuator method – no need to screw it in.
Videos
ENDURA FLAP® PET DOORS: Endura Dog Door Impact Test
ENDURA FLAP® PET DOORS: Thermo Panel 3e
How to Measure Your Sliding Glass Door for a Pet Door
How to Adjust the Magnet Strength on Your Endura Flap
How to Adjust Your Stepover
FAQ
Warranty
Warranty Type: Lifetime
Duration: Lifetime of the product.
Coverage: Defects in materials and workmanship under standard regular use.
Exclusions:
Damage caused by misuse or not using the product as intended.
Improper installation.
Damage caused by chewing.
